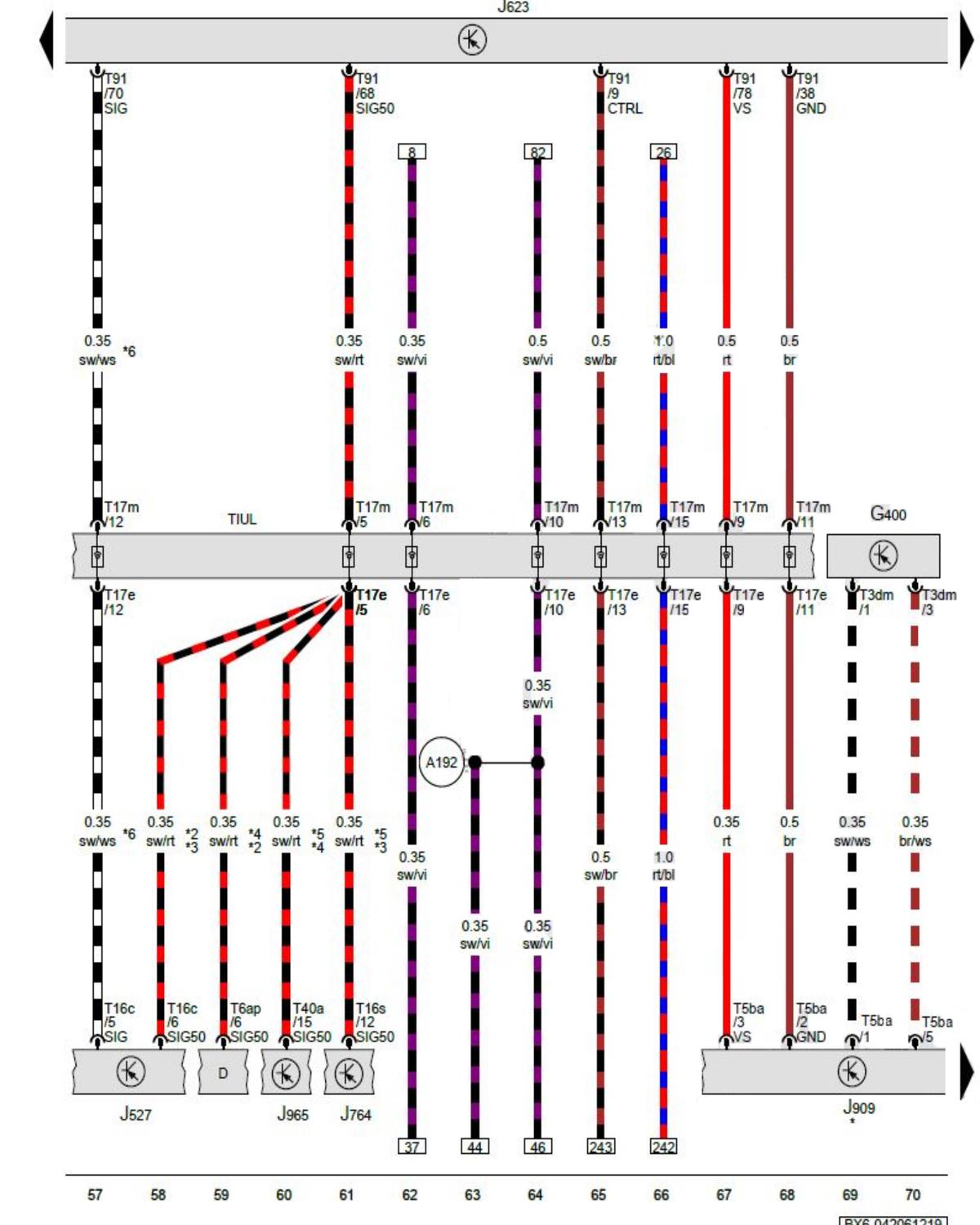

Ignition/Starter Switch, Fuel Tank Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module, Electronic Steering Column Lock Control Module, Fuel Tank Leak Detection Control Module, Access/ Start System Interface: Notes

GWWBX6-042061217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
