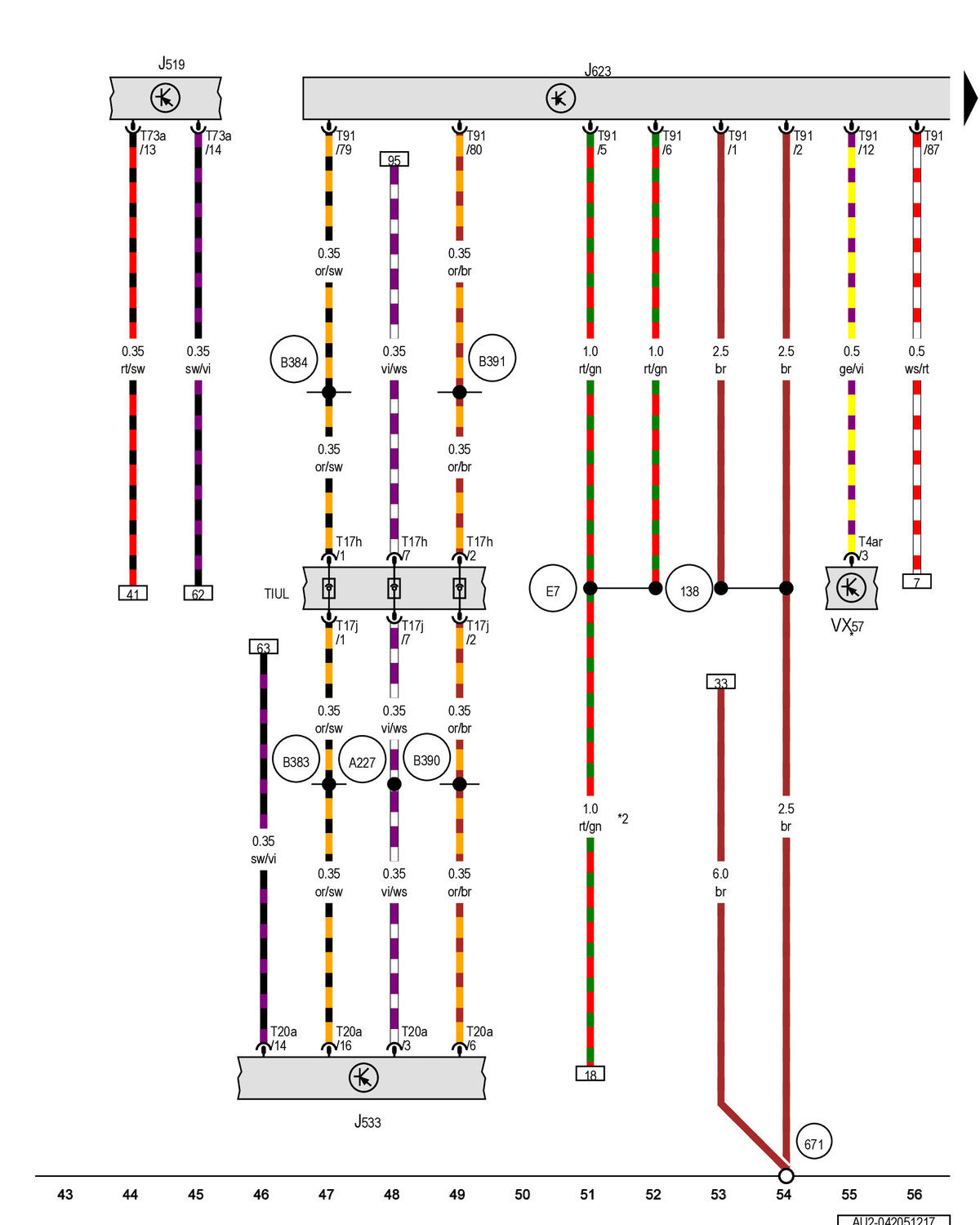

Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes

GWWAU2-042051217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
