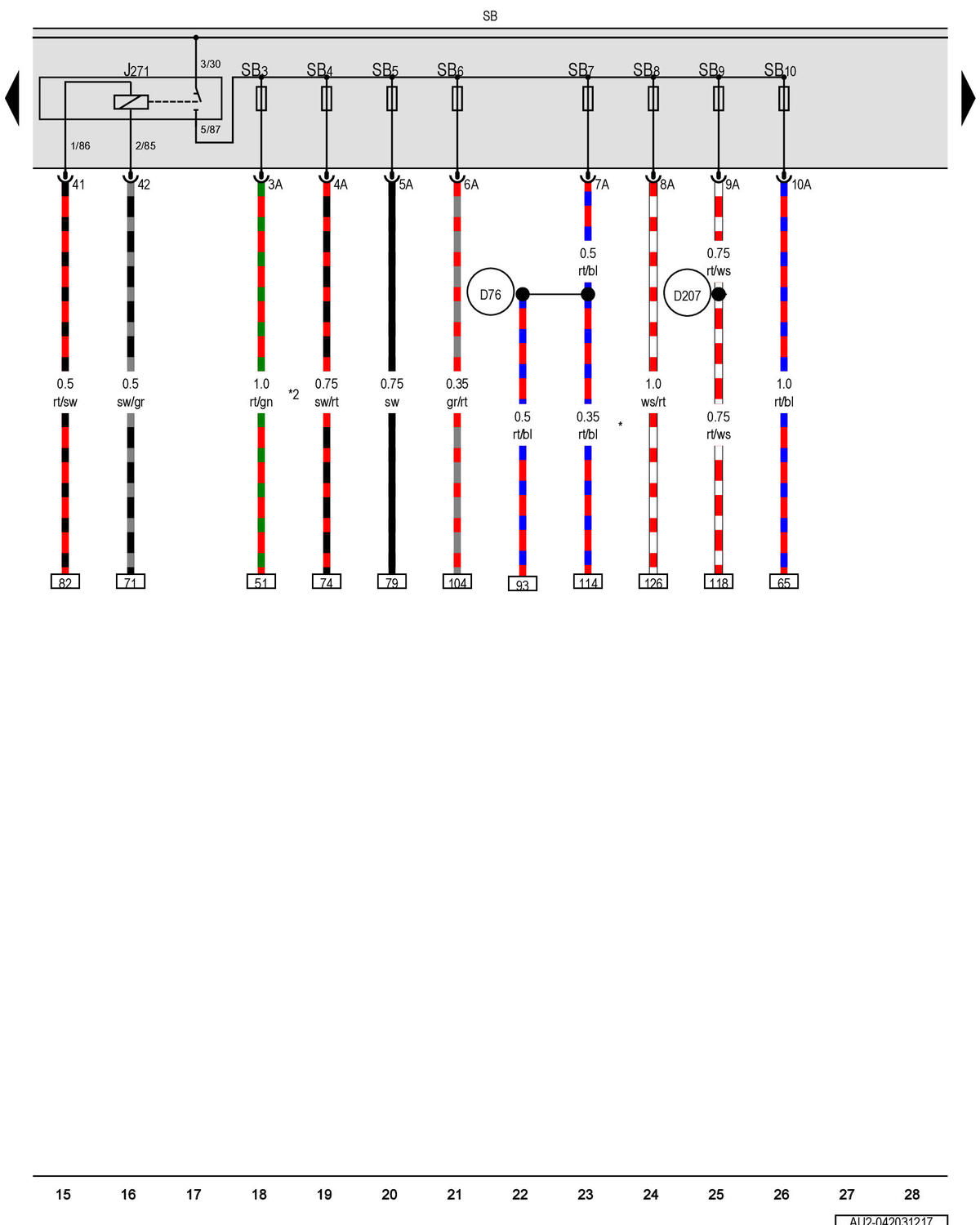

MOTRONIC Engine Control Module Power Supply Relay, Fuse Panel B: Notes

GWWAU2-042031217

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
