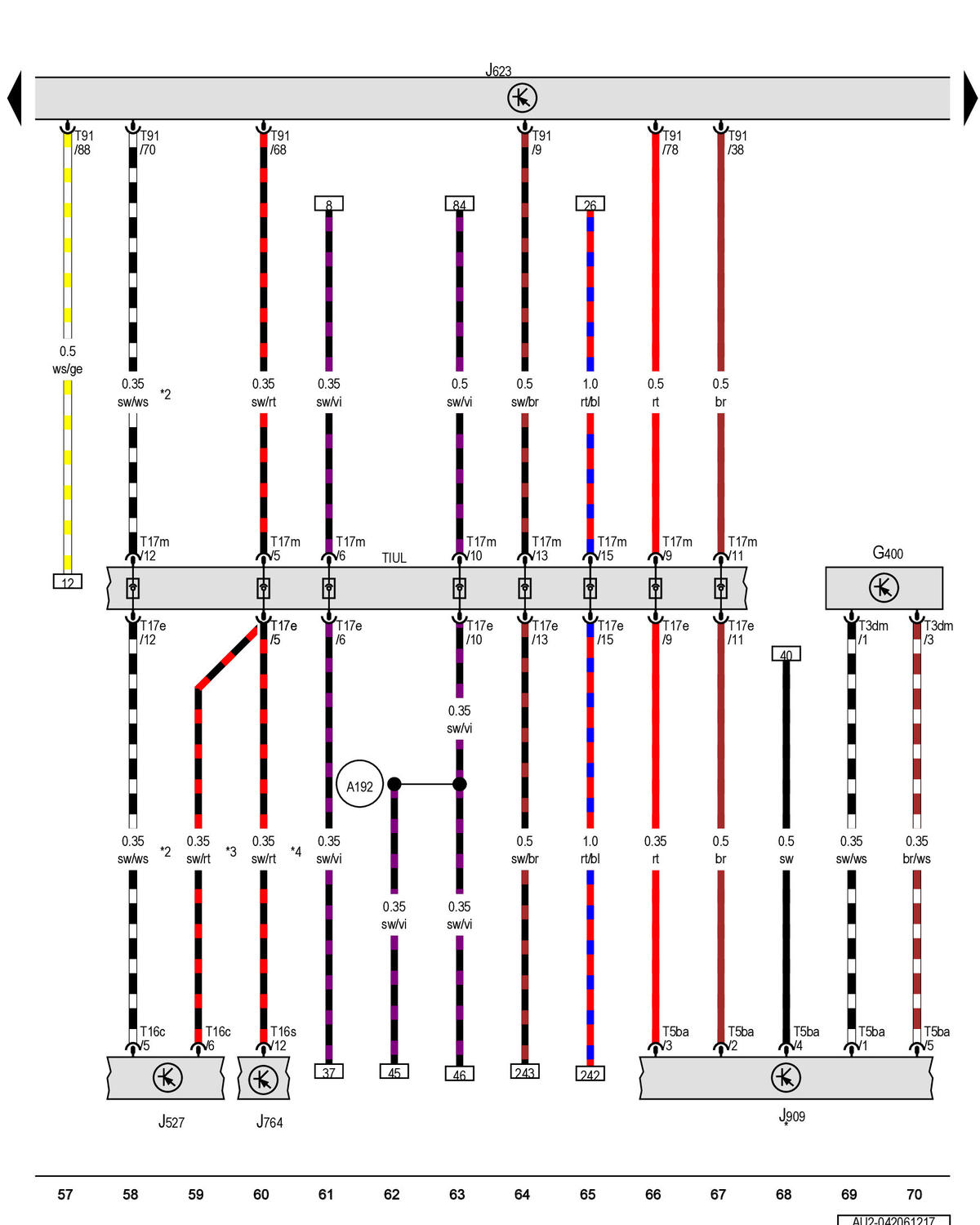

Wiring Diagram [CXBA,CXBB]
>>
Wiring Diagram
>>
Fuel Tank Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module, Electronic Steering Column Lock Control Module, Fuel Tank Leak Detection Control Module
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Tank Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module, Electronic Steering Column Lock Control Module, Fuel Tank Leak Detection Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
