Wiring Diagram [CXBA,CXBB]
>>
Wiring Diagram
>>
Fuel Delivery Unit, Fuel Pump Control Module, Instrument Cluster
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

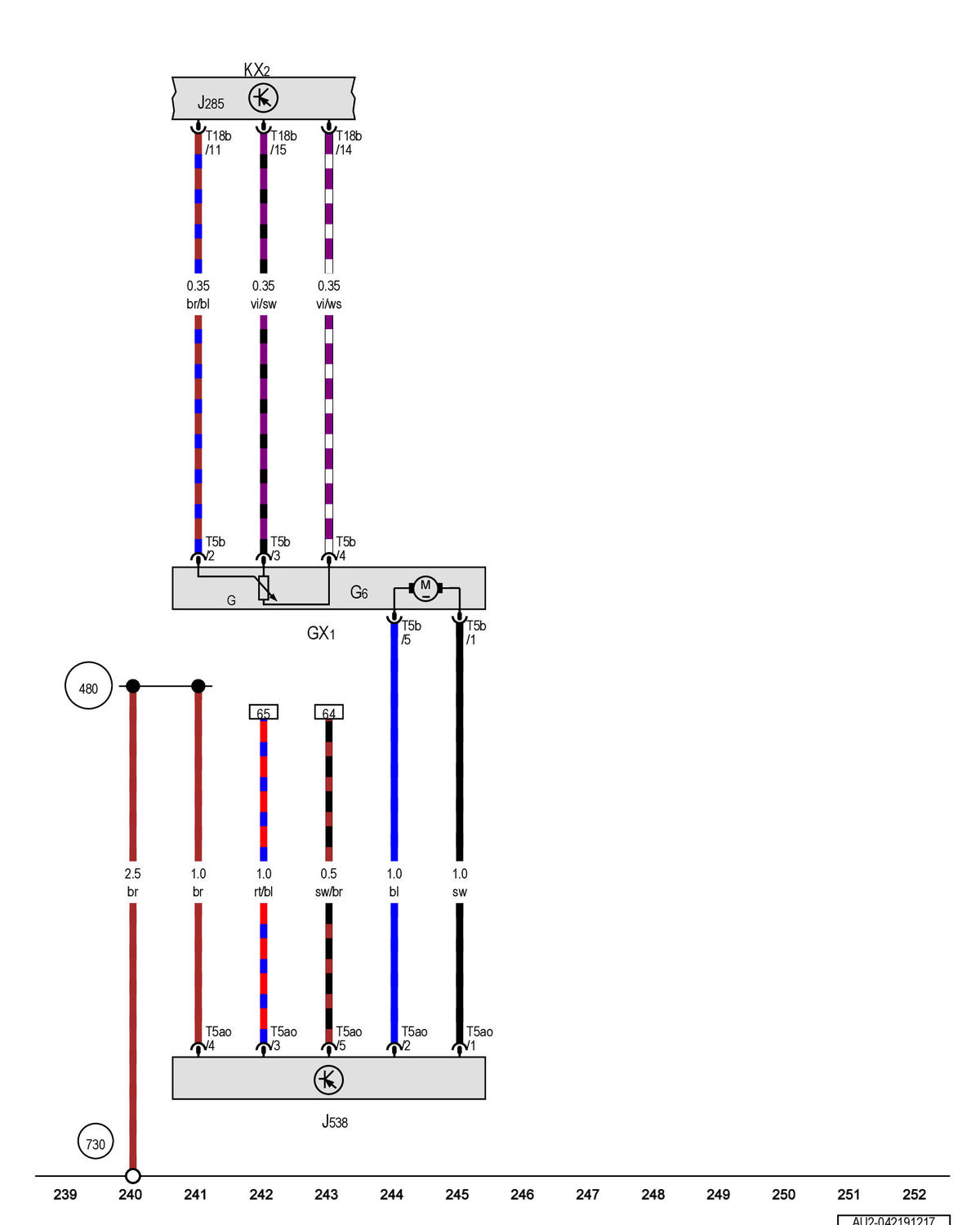

Fuel Delivery Unit, Fuel Pump Control Module, Instrument Cluster: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
