Special Tools

Special tools and workshop equipment required

• Bearing Driver - Multiple Use: VW244B
• Transmission Support: VW353
• Press Plate: VW401
• Press Plate: VW402
• Press Piece - Rod: VW407
• Press Piece - 37mm: VW416B

Special tools and workshop equipment required

• Guide Pin: VW436A
• Press Piece - Guide Pin: VW439
• Slide Hammer Set: VW771
• Crankshaft Holding Fixture: VW801
• Guide Pin: 10-15
• Press Piece - Pivot Mount Bushing: 3124

Special tools and workshop equipment required

• Bearing Installer - Crankshaft Pilot Bearing: 3264
• Subframe Support Tool: 3290
• Torque Wrench 1331 5-50Nm: VAG1331
• Bushing Driver - Selector Shaft: T10168
• Locking Sleeve Drift: T10169  or Locking Sleeve Drift: T10362  . Refer to Figure
• Breather Tube Tool: T10203

Special tools and workshop equipment required

• Holding Plate: VW309A
• Holding Fixture: VW313
• Transmission Support: VW353
• Press Piece - Multiple Use: VW455  or Press Piece - Front Wishbone: 3160
• Slide Hammer Set: VW771
• -1- Puller - Kukko Internal - 12-16mm: 21/01
• -3- Puller - Kukko Quick Action Separating Tool - 5-60mm: 17/0
• -4- Puller - Kukko Counterstay: 22/1

Special tools and workshop equipment required

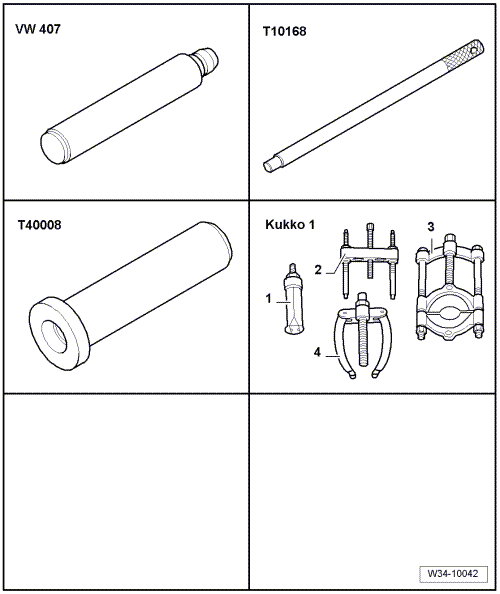

• Press Piece - Rod: VW407
• Bushing Driver - Selector Shaft: T10168
• Seal Installer - Drive Axle: T40008
• -1- Puller - Kukko Internal - 14-19mm: 21/2
• -1- Puller - Kukko Internal - 20-30mm: 21/4
• -4- Puller - Kukko Counterstay: 22/1
• -4- Puller - Kukko Counterstay: 22/2

Special tools and workshop equipment required

• Bracket - Multiple Use: 30-211A
• Seal Installer - Drive Flange: T10143  or Seal Installer - Output Shaft Oil Seal: T10180
• Locking Sleeve Drift: T10169
• or Locking Sleeve Drift: T10362  . Refer to Figure
• Seal Installer - Drive Axle: T40008
• Torque Wrench 1331 5-50Nm: VAG1331
• Hot Air Blower: VAG1416
• Pry Lever: 80-200

Special tools and workshop equipment required

• Window Release Tool: T10236
• Press Piece - Multiple Use: VW412
• Over-Center Spring Assembly Tool: T10178
• Engine Support Bridge - Engine Support 25: 10-222A/25
• 2 = Counter-Support for example, from : Kukko  model line 16
• Wedge: T10357

Special tools and workshop equipment required

• Connecting Pin: T10027A
  Fig 8: Identifying Connecting Pin T10027 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Press Piece - Block: T10083
  Fig 9: Identifying Pressing Support T10083

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Socket And Extended Bit: T10107
  Fig 10: Identifying Multi-Point Socket T10107 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Gearbox Support: T10108

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Wedge Set: T10383
  Fig 11: Identifying Wedge T10383

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller - Crankshaft/Power Steering Seal: T20143/1
  Fig 12: Extractor Hook T20143

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Brackets: T40093/3-6  (quantity 2)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Hose Clip Pliers: VAG1275A
  Fig 13: Hose Clamp Pliers VAG 1275

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 1332 40-200Nm: VAG1332
  Fig 14: Identifying Torque Wrench 1332

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane: VAS6100
  Fig 15: Identifying Shop Crane VAS 6100

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Bung Set: VAS6122
  Fig 16: Engine Bung Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane - Drip Tray: VAS6208
  Fig 17: Drip Tray For Shop Crane VAS 6208

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Plate: VW309A
  Fig 18: Holding Plate VW 309

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Transmission Support: VW353
  Fig 19: Identifying Transmission Support VW 353

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Press Piece - Shift Rod/Alternator: VW423
  Fig 20: Identifying Sleeve VW 423

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamps - Up To 25mm: 3094
  Fig 21: Hose Clamps

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Rear Wheel Bearing Kit - Piece 5: 3253/5
  Fig 22: Assembly Tool 3253

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• For oil filler plug with multi-point fitting Triple Square Socket Driver: 3357  .
  Fig 23: 3357 Triple Square Socket Driver

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• or the equivalent equipment, Backrest Panel Tool: 3370
  Fig 24: Backrest Panel Tool 3370

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Sealing Grease. Refer to the Parts Information.
• Holding Fixture: VW313
