Selector Mechanism, Disassembling And Assembling

Special tools and workshop equipment required

Window Release Tool: T10236
Press Piece - Multiple Use: VW412
Over-Center Spring Assembly Tool: T10178
Engine Support Bridge - Engine Support 25: 10-222A/25
2 = Counter-Support for example, from : Kukko model line 16
Wedge: T10357
Press Piece - Block: T10083

Disassembling

-- Remove the gearshift mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .

-- Remove the seal from the gearshift housing.

Fig 1: Bending Tabs On Shift Mechanism Base Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Bend open the tabs -arrows- on the base plate with a screwdriver. (Only the tabs on the left side of the base plate are shown in the illustration).

-- Remove the base plate.

-- Remove the shift cable and the selector cable from the shift housing. Refer to GEARSHIFT CABLE AND SELECTOR CABLE, REMOVING AND INSTALLING .

-- Lift the upper end -A- of the pressure spring over the tab on the selector bracket.

Fig 2: Identifying Bearing Shell Notches

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using a screwdriver, press bearing shell notches -arrows- in direction of shift lever guide bearing; breaking of notches if necessary.

-- Pry out bearing shell -A- with shift lever guide -B- from selector housing.

Fig 3: Identifying Bearing Shell Pressed Off Shift Lever Guide Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then press bearing shell off shift lever guide bearing and remove.

Pay attention to the guides -A- in the next work procedure.

Fig 4: Identifying Ball Studs On Selector Bracket -Arrow 2- And Shift Lever Turned In -Direction Of Arrow 1-
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
The guides must not break off.

-- Lift the bottom end in direction of -arrow 1- of the pressure spring onto shoulder on selector bracket.

-- Now raise shift lever guide up as far as stop and remove ball studs from selector bracket in direction of -arrow 2-.

-- Turn the shift lever guide in direction of -arrow 1-.

Fig 5: Identifying Shift Lever Turned -Direction Of Arrow 1- To Place Pins In Shift Housing Opening

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The pins -arrow 2- must be in the shift housing opening.

-- Move the gearshift lever guide and the gearshift lever in the direction of -arrow 3-.

Assembling

Fig 6: Identifying Ball Studs On Selector Bracket -Arrow 2- And Shift Lever Turned In -Direction Of Arrow 1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

The lower side of the spring in direction of -arrow 1 - can spring down uncontrolled from the selector bracket shoulder during subsequent handling.

-- Push the lower end carefully from the selector bracket shoulder.

The spring sides then twist "diagonally" with a loud noise.

-- Release the tension on the ends -A and B- by turning both ends to the right.

Fig 7: Identifying Spring Ends Facing In Opposite Directions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The ends -A and B- must face in the opposite direction.

-- Install the shift lever guide into the shift housing.

Fig 8: Identifying Pins Located In Shift Housing Opening

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The pins -arrow 1- are still located in the shift housing opening.

-- Turn the shift lever guide in direction of -arrow 2- until the ball stud -A- is above the opening in the shift housing.

-- Place the shift housing with the shift lever guide into the larger cavity -arrow- in the : T10083 .

Fig 9: Identifying Selector Housing With Shift Lever Guide Placed In Larger Depression On Pressing Support T10083

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The shift lever guide must project out of selector housing as far as stop.

Fig 10: Identifying Spring Ends Facing In Opposite Directions
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The selector bracket is only partially shown to provide a better illustration.

-- Insert the end -A- of the pressure spring into the guide from the top.

-- Pull the end -B- of the pressure spring downward and insert it next to the guide (toward the ball head).

-- Carefully remove the shift housing and shift lever guide from the : T10083 .

-- Move the selector bracket all the way to the rear opposite mounting holes for shift and selector cable in direction of -arrow 1-.

Fig 11: Identifying Selector Bracket Moved Back As Far As Stop & Ball Head Pins Pressed Into Selector Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Grease the ball stud.

-- Press the ball stud into the selector bracket -arrow 2-.

The guides -A- and the tabs -B- must not be damaged.

-- Place the shift housing with the shift lever guide into the larger cavity -arrow- in the : T10083 .

Fig 12: Identifying Selector Housing With Shift Lever Guide Placed In Larger Depression On Pressing Support T10083

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The shift lever guide must project out of selector housing as far as stop.

-- Pry the upper end -A- of the pressure spring over the pin on the selector bracket.

Use a new bearing shell -B-.

-- Grease the bearing shell and the shift lever guide bearing.

-- Press the bearing shell all the way onto the shift lever guide bearing.

-- Remove the shift housing from the : T10083 .

-- Insert the bottom end -C- of the pressure spring into the guide.

-- Pry the upper end -A- of the pressure spring over the pin on the selector bracket.

-- Push the bearing shell into the shift housing in direction of -arrows-.

Fig 13: Identifying New Bearing Shell -B- To Raise Upper Side Of Spring -A- Over Selector Bracket Pins

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

All retaining tabs must engage.

-- Install the shift cable and selector cable. Refer to OVERVIEW - GEARSHIFT LEVER AND GEARSHIFT HOUSING .

Base Plate, Attaching to Gearshift Housing

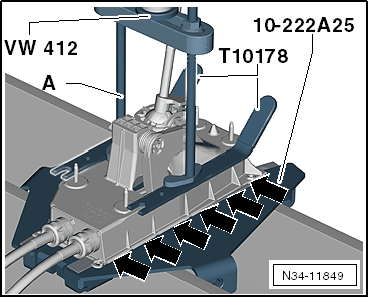

Fig 14: Attaching Base Plate To Gearshift Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install a new seal on the base plate.

CAUTION:

There is a danger of causing damage to the gearshift housing and base plate.

Tension the gearshift housing only slightly.

-- Bend the tabs -arrow- back over all around the base plate to secure it (only the tabs on the left side of the base plate are shown in the illustration).

-- The tabs can be bent back over using the : T10357 .

-A- = Counter-Support for example, from : Kukko model line 16

-- Glue a new seal on the gearshift housing. Refer to OVERVIEW - GEARSHIFT LEVER AND GEARSHIFT HOUSING .

-- Install the gearshift mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .

-- Adjust the gearshift mechanism. Refer to SELECTOR MECHANISM, ADJUSTING .
