Halogen Headlamps, Adjusting

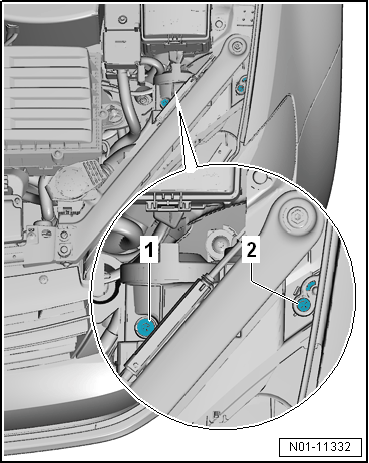

Left Headlamp, Adjusting, Golf/Golf Wagon

Adjusting screws for the right headlamp are a mirror image.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Lateral adjustment
2. Height adjustment

-- Turn the adjusting screw for height adjustment -2- until the correct setting is achieved.

-- Turn the adjustment screw for lateral adjustment -1- until the correct setting is achieved. The side adjustment is sealed for SAE headlamps.

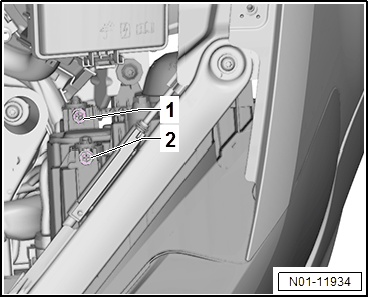

Left Headlamp, Adjusting, Golf Sportsvan

Adjusting screws for the right headlamp are a mirror image.

Fig 1: Left Headlamp, Adjusting Screws Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Lateral adjustment
2. Height adjustment

-- Turn the adjusting screw for height adjustment -2- until the correct setting is achieved.

-- Turn the adjustment screw for lateral adjustment -1- until the correct setting is achieved. The side adjustment is sealed for SAE headlamps.
