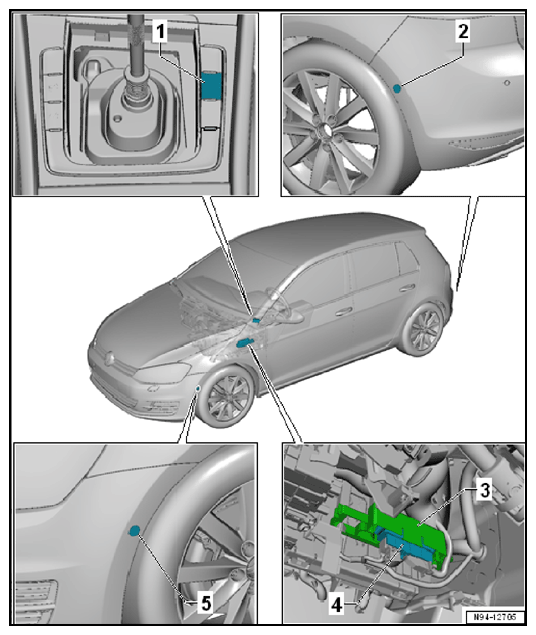

Overview - Parallel Parking Assist
- Parallel Parking Assistance Button - E581-
- Removing and installing. Refer to Parallel Parking Assistance Button E581, Removing and Installing .
- Rear Parallel Parking Assist Sensors
- Left Rear Parallel Parking Assistance Sensor - G716-
- Right Rear Parallel Parking Assistance Sensor - G717-
- Removing and installing. Refer to Rear Sensor, Removing and Installing .
- Bracket
- For the Parking Aid Control Module - J446-
- Removing and installing. Refer to Parking Aid Control Module J446/Parallel Parking Assistance Control Module J791 Bracket, Removing and Installing .
- Parallel Parking Assistance Control Module - J791-
- Removing and installing. Refer to Parking Aid Control Module - J446-, Removing and Installing .
- Parallel Parking Assist Front Sensor
- Left Front Parallel Parking Assistance Sensor - G568-
- Right Front Parallel Parking Assistance Sensor - G569-
- Removing and installing. Refer to Front Sensor, Removing and Installing .
