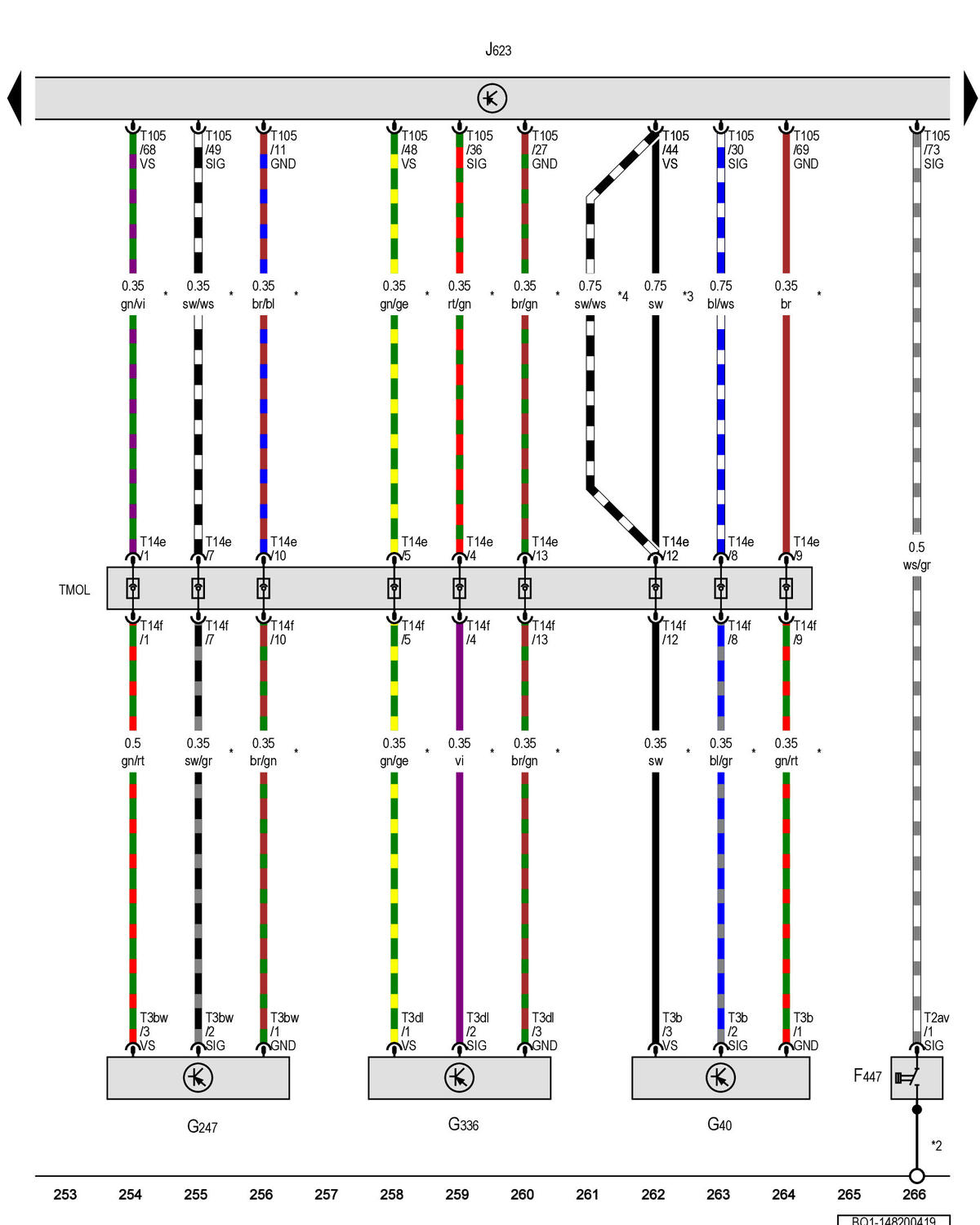

Oil Pressure Switch, Level 3, Camshaft Position Sensor, Fuel Pressure Sensor, Intake Manifold Runner Position Sensor, Engine/Motor Control Module: Notes

GWWBQ1-148200419Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
