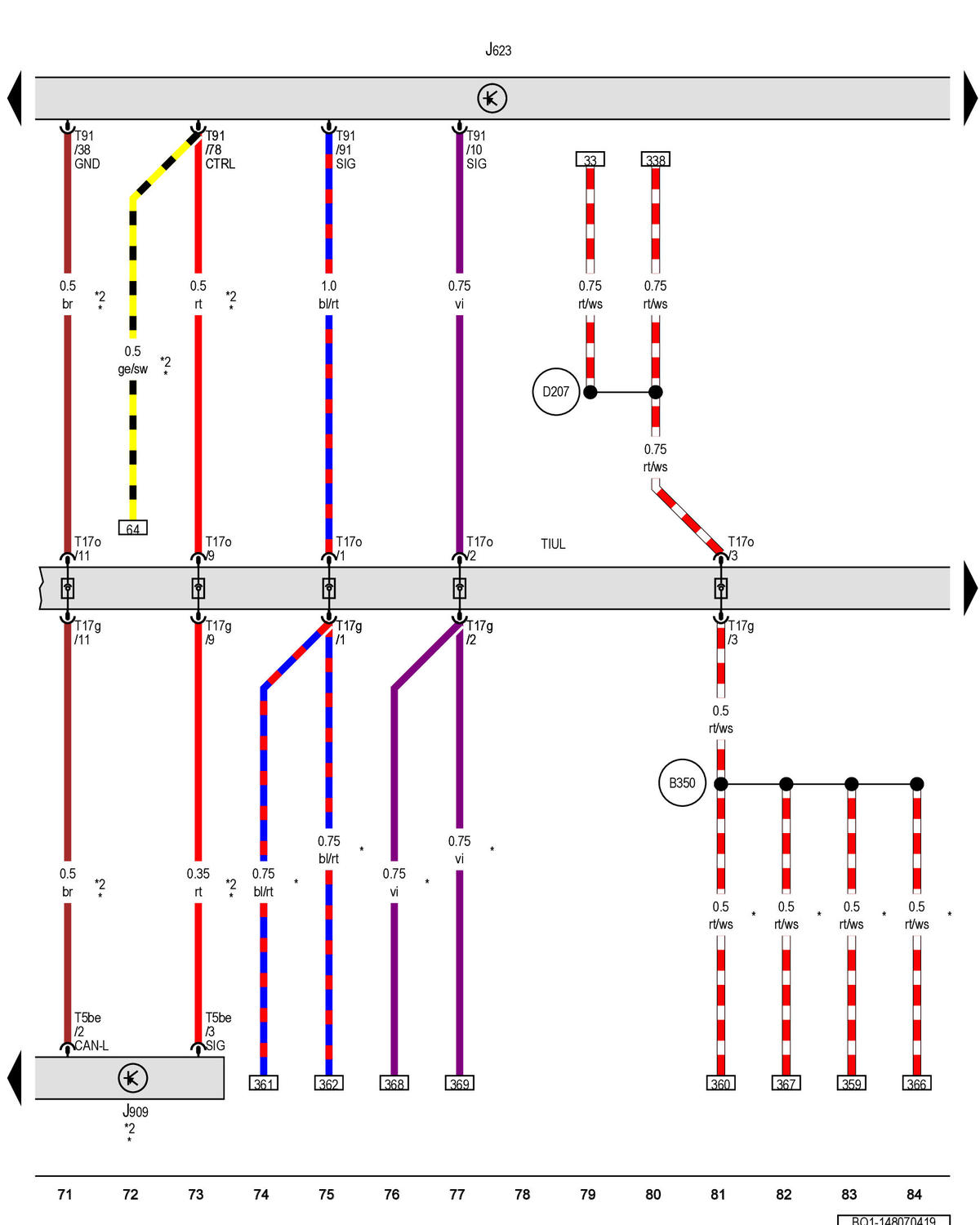

Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

GWWBQ1-148070419

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
