Control Module/Digital Sound System Amplifier, Removing And Installing: Removing

-- Move the left front seat into its highest position and the move it all the back.

-- Switch off the ignition and all electrical equipment and remove the ignition key.

-- Remove the lower cover -arrow- from the seat.

Fig 1: Identifying Lower Seat Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -arrows- on the Amplifier -R12- -1-.

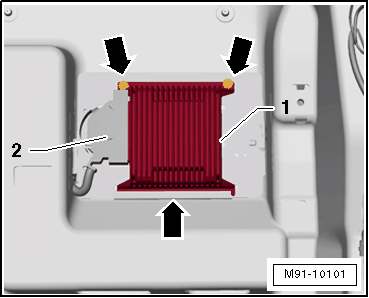

Fig 2: Identifying Amplifier

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -2- from the Amplifier -R12- -1-.

-- Remove the Amplifier -R12- from the notch -arrow-.
