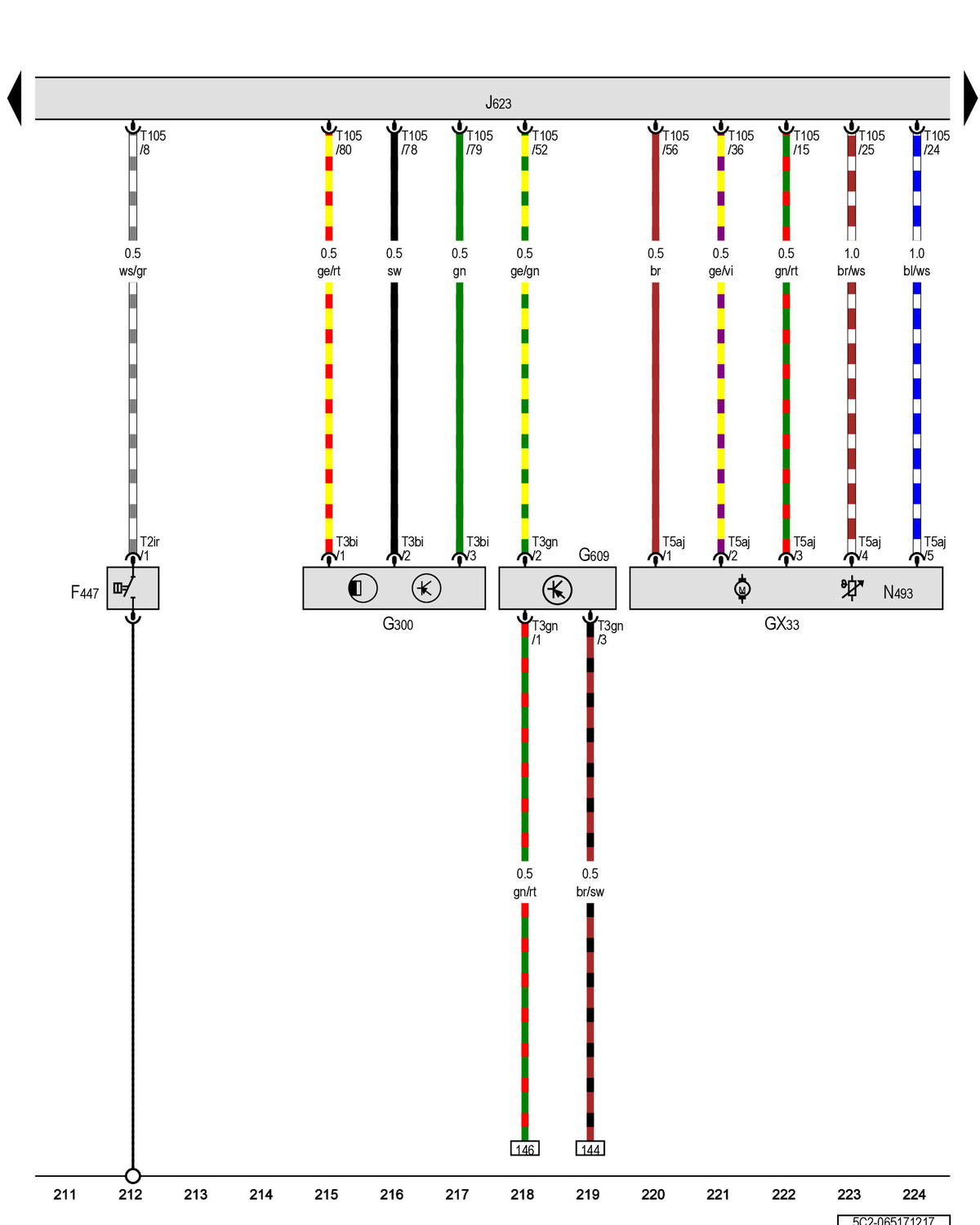

Oil Pressure Switch, Level 3, Engine Temperature Control Module, Camshaft Position Sensor 3, Secondary Air Injection Sensor 1, Engine/Motor Control Module: Notes

GWW5C2-065171217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
