Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DCSM installed. If the current DCSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DCSM following the on-screen instructions.

2.

Position the passenger front seat forward (enough for DCSM access) and to the full upward position.

Courtesy of FORD MOTOR COMPANY

3.

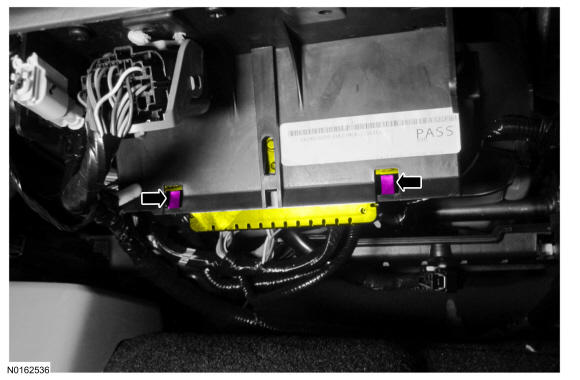

Release the 2 locking tabs and position the DCSM out of the bracket.

Courtesy of FORD MOTOR COMPANY

4.

Remove the DCSM.
1. 1.

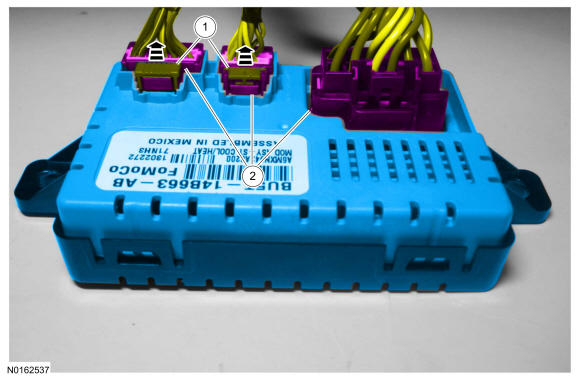

  Release the locking wedges.
1. 2.

  Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.

6.

NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the DCSM following the on-screen instructions.
