Overview - Center Console, Basic Equipment Level

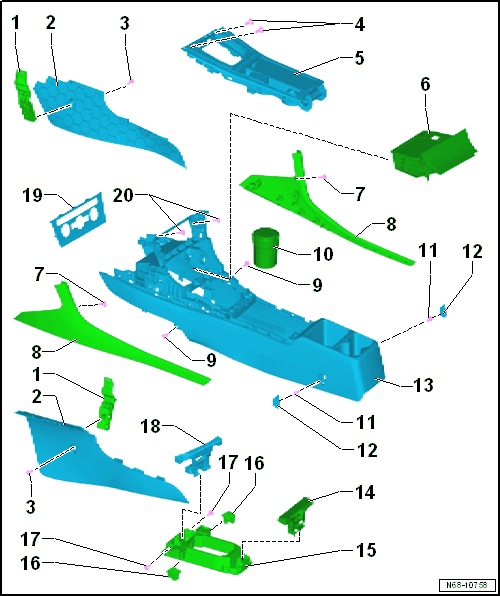

Fig 1: Exploded View Of Center Console, Basic Equipment Level

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Bracket
- For the footwell center console trim panel
- Left and right
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Footwell Center Console Trim Panel
- Left and right
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
Bolt
- 1.5 Nm
- Quantity: 2
Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
Front Center Console Storage Compartment
- Removing and Installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
Center Console Cover
- Left and right
- Removing and Installing. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
Front Ashtray
- Equipped on some models
- Removing and Installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
Bolt
- 6 Nm
- Quantity: 2
Cap
- Left and right
- Push in the center console
Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Bracket Behind Shifting Mechanism
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Shifting Mechanism Noise Insulation
Bracket in Front of Shifting Mechanism
- For the center console
- Left and right
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
Securing Bracket
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Display Control Head Trim
- Removing and Installing. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
