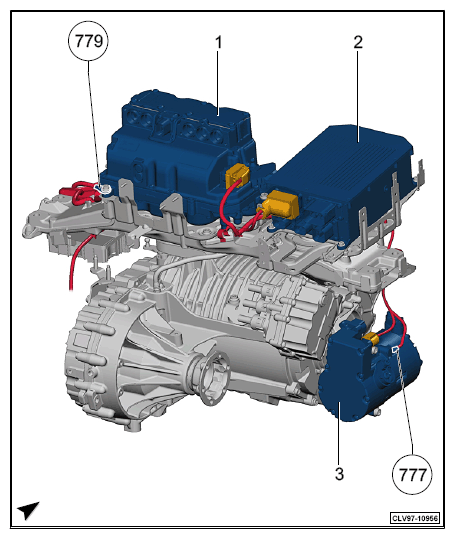

E-Drive, Front View

  1. 1  - Voltage converter -A19-
  2. 1  - Drive motor inverter -A37-
  3. 1  - Electric drive power and control electronics -JX1-
  4. 2  - On-board charging unit -A11-
  5. 2  - High voltage battery charger 1 -AX4-
  6. 2  - High voltage battery charger control module -J1050-
  7. 3  - A/C compressor control module -J842-
  8. 3  - Electrical A/C compressor -V470-
  9. 777  - A/C compressor ground connection
  10. 779  - Electric drive power and control electronics ground connection 1
G12754128Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
