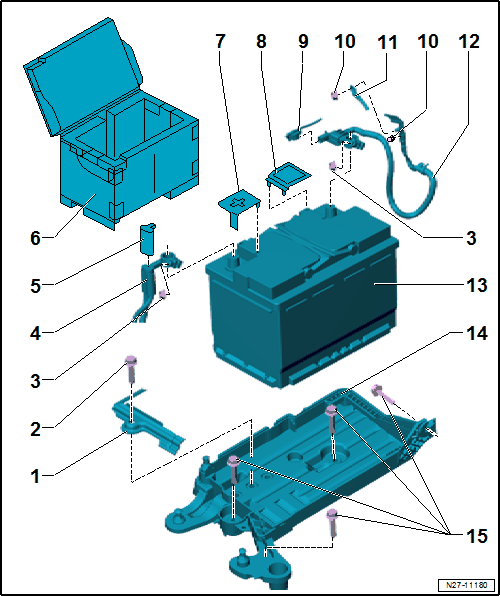

Overview - Battery
- Retaining Bracket
- Bolt
- 15 Nm
- Nut
- 6 Nm
- Positive Cable
- With battery terminal
- Disconnecting and connecting. Refer to BATTERY, REMOVING AND INSTALLING .
- Cap
- For positive wire
- Heat Protection Sleeve
- Depending on the vehicle equipment level
- Cover
- For positive terminal
- Depending on the vehicle equipment level
- Cover
- For negative terminal
- Connector
- For the Battery Monitoring Control Module -J367-
- Follow the sequence when connecting the ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING
- Nut
- 9 Nm.
- Ground Cable
- Ground Cable
- With battery terminal and Battery Monitoring Control Module -J367-
- Removing and installing . Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
- Disconnecting and connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Adapting Battery Monitoring Control Module -J367-. Refer to Battery Monitoring Control Module -J367-, ADAPTING .
- Battery -A-
- Removing and installing . Refer to BATTERY, REMOVING AND INSTALLING .
- Disconnecting and connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Battery Tray
- Removing and installing . Refer to BATTERY TRAY, REMOVING AND INSTALLING .
- Bolt
- 9 Nm.
- Quantity: 3
