Tires, Checking Tread Depth (Including Spare Tire)

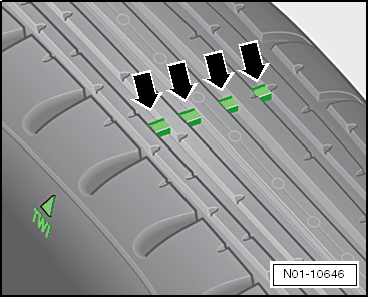

Fig 1: Identifying Tread Depth
GWWN01-10646Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the tread depth.

Minimum tread depth: 1.6 mm

NOTE:

This value may vary for individual countries due to different legal regulations. Check with the importer.

The minimum tread depth is reached when no more profile is present at the 1.6 mm high tread wear indicators -arrows- positioned at intervals around the tire.

If the tread depth is close to the permitted minimum tread depth, inform the customer.
