Glass Panel Slotted Guide Rail Guide, Cleaning And Lubricating From Outside

Glass panel opened all the way.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the grease and dirt residue on the glass panel slotted guide rail guide with a lint-free cloth.

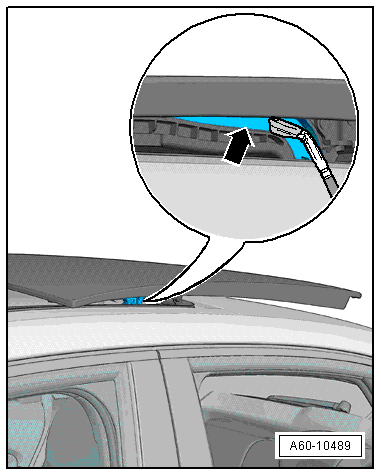

-- Apply lubricant on the glass panel slotted glide rail guide from the outside -arrows-.

-- Remove excess lubricant on the guide rail using a lint-free cloth.

-- Repeat the procedure on the other side of the vehicle.

-- Open and close the sunroof completely and check again for any residual lubricant on all lubrication points.
