Fog Lamps And Other Auxiliary Headlamps, Adjusting

NOTE:

Adjusting the headlamps is invoiced separately.

Version 1

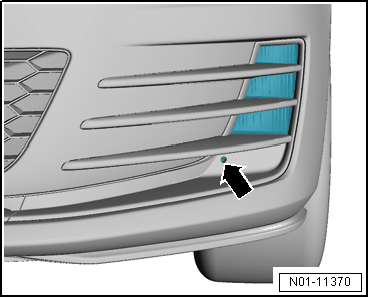

Right fog lamp in bumper

The adjusting screw on left fog lamp is a mirror image.

-- To adjust the light range, turn the adjusting screw -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lateral adjustment is not possible.

Version 2

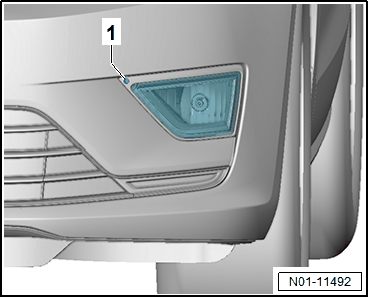

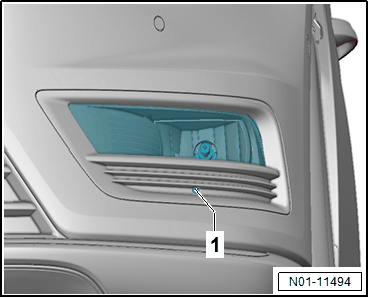

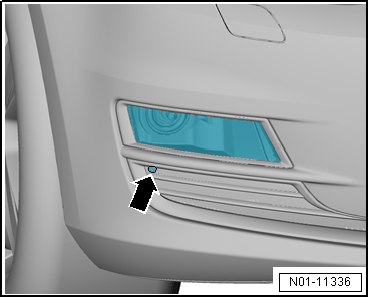

Left fog lamp in bumper

The adjusting screw on the right fog lamp is a mirror image.

-- To adjust the light range, turn the adjusting screw -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Version 3

Left fog lamp in bumper

The adjusting screw on the right fog lamp is a mirror image.

-- To adjust the light range, turn the adjusting screw -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lateral adjustment is not possible.

Version 4

Left fog lamp in bumper

The adjusting screw on the right fog lamp is a mirror image.

-- To adjust the light range, turn the adjusting screw -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Other Auxiliary Headlamps

Retrofitted auxiliary headlamps of other systems must be checked and adjusted according to the guidelines applicable to them.
