Engine Sound Generator Control Module -J943-, REMOVING AND INSTALLING: Removing

-- Remove the radio. Refer to RADIO, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

For reasons of clarity, the instrument panel is not shown.

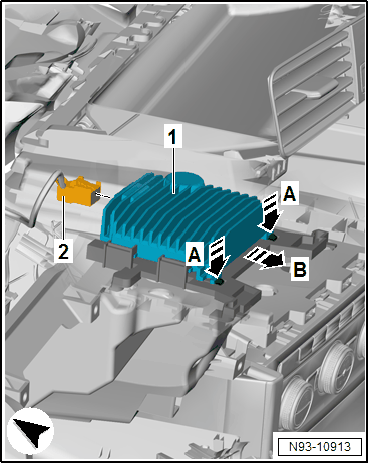

-- Release the retainers in the direction of -arrow A-.

-- Remove the Engine Sound Generator Control Module -J943- -1- from the bracket in the direction of -arrow B-.
