Overview - Engine Control Module

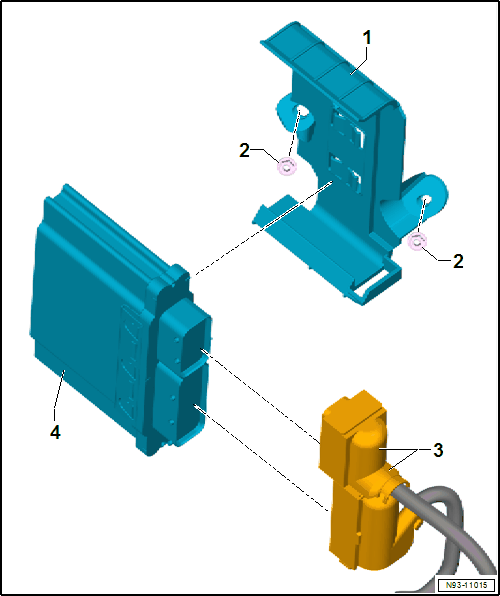

GWWN93-11015

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- Removing and installing. Refer to Engine Control Module -J623- BRACKET, REMOVING AND INSTALLING .
Nuts
- 9 Nm
- Quantity: 2
Connectors
Engine Control Module -J623-
- Removing and installing. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .
