Register - Passenger Side: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the passenger air bag module. Refer to PASSENGER AIRBAG .

2.

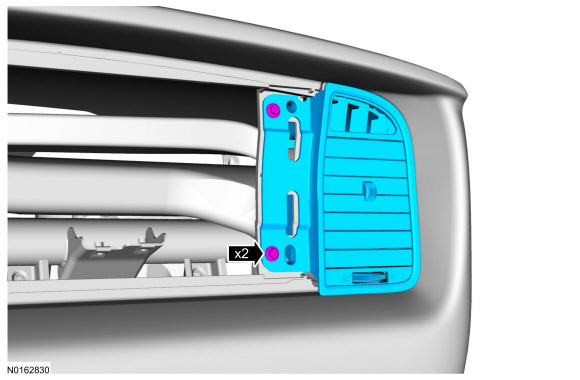

Remove the passenger side register screws and remove the passenger side register.
- Tighten to 2.5 Nm (23 lb-in).

Courtesy of FORD MOTOR COMPANY
