Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If installing a new Heating Ventilation Air Conditioning (HVAC) module, the new module must be configured for the vehicle. Refer to
Module Configuration
.
With Electronic Automatic Temperature Control Remote Mount
- 1.
Remove the Front Controls Interface Module (FCIM). Vehicles equipped with AM/FM CD Sync, Refer to Information and Entertainment Systems - 4.2-Inch (107 mm) Screen, AM/FM CD Sync . Vehicles equipped with Sony Audio System, Refer to Information and Entertainment Systems - Sony Audio System . Vehicles equipped with THX Audio System, Refer to Information and Entertainment Systems - THX Audio System .
- 2.

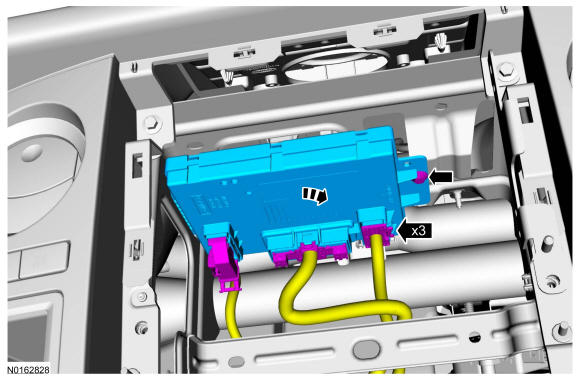

Remove the HVAC module.- Disconnect the HVAC module electrical connectors.
- Remove the HVAC module screw.
Vehicles with Electronic Manual Temperature Control Base
- 3.
Remove the Front Controls Interface Module (FCIM). Vehicles equipped with AM/FM CD Sync, Refer to Information and Entertainment Systems - 4.2-Inch (107 mm) Screen, AM/FM CD Sync . Vehicles equipped with Sony Audio System, Refer to Information and Entertainment Systems - Sony Audio System . Vehicles equipped with THX Audio System, Refer to Information and Entertainment Systems - THX Audio System .
All vehicles
