Section 99 (Engine Cooling System (H4DO)): Radiator: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The radiator is pressurized when the engine and radiator are hot. Wait until engine and radiator cool down before working on the radiator.

Remove the V-belt covers.

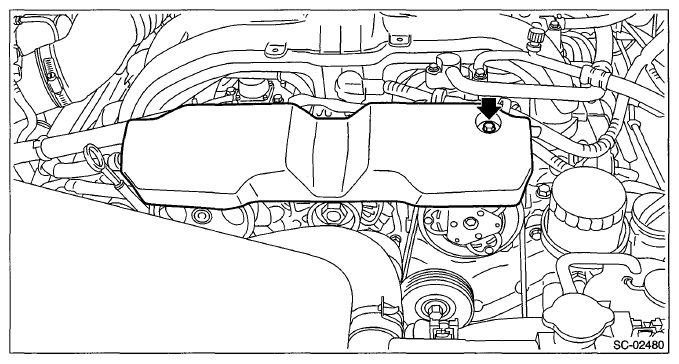

Fig 1: Locating V-Belt Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.

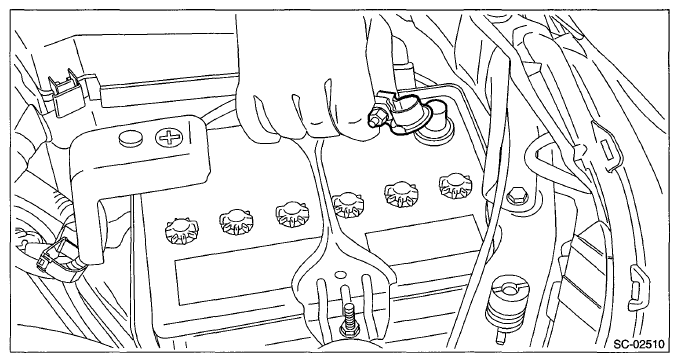

Fig 2: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Drain engine coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Disconnect the radiator outlet hose from thermostat cover.

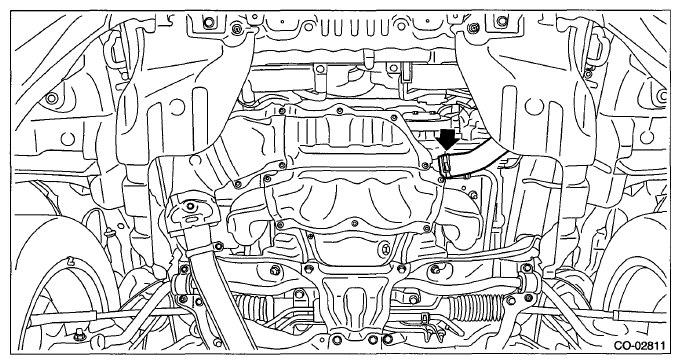

Fig 3: Locating Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ATF cooler hoses from ATF pipes. (AT model)
NOTE: Plug the ATF pipe to prevent ATF from leaking.

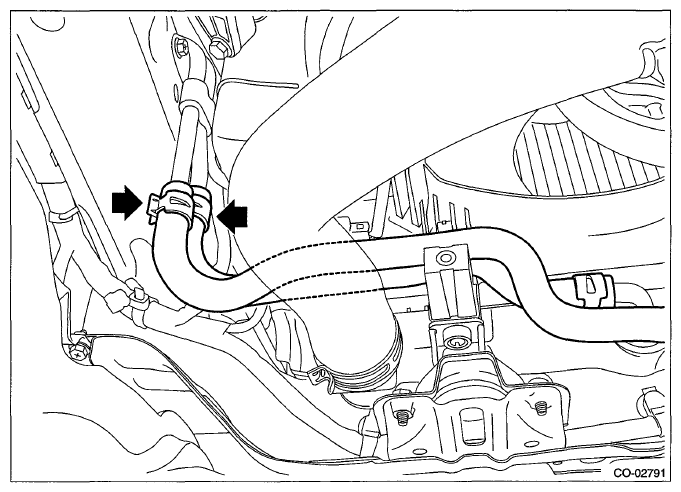

Fig 4: Locating ATF Cooler Hose Clamps
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the air intake duct (Rear). < Ref. to REMOVAL , Air Intake Duct. >
Remove the reservoir tank. < Ref. to REMOVAL , Reservoir Tank. >
Disconnect the connector (A) from the main fan motor assembly and the connector (B) from the sub fan motor assembly.

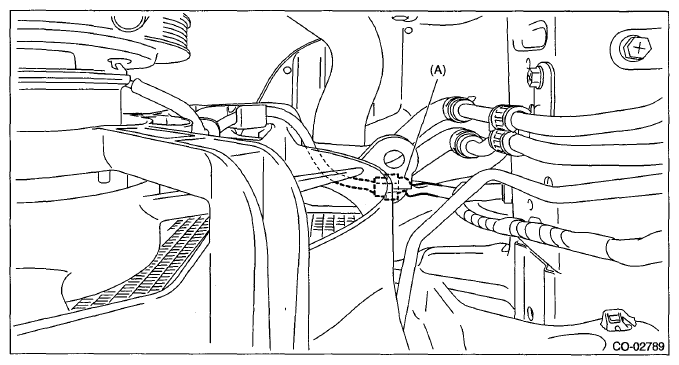

Fig 5: Main Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.

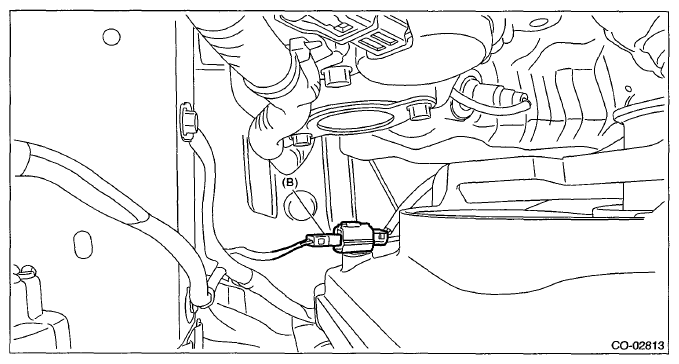

Fig 6: Sub Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator inlet hose from the water pipe assembly.

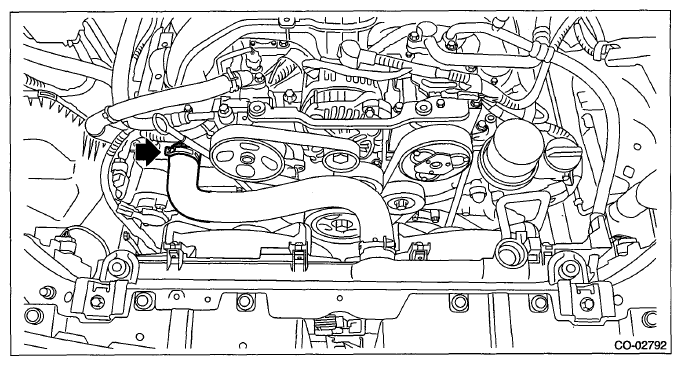

Fig 7: Locating Radiator Inlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

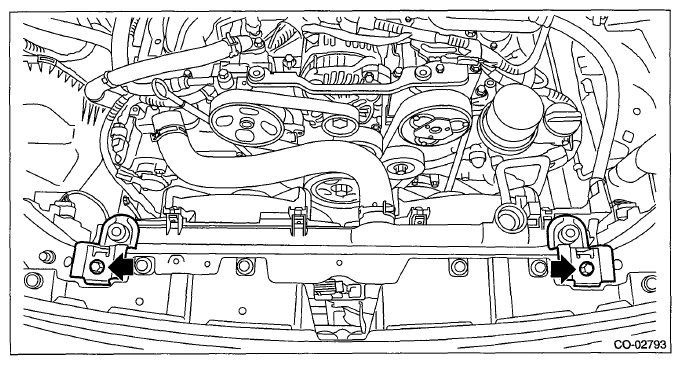

Fig 8: Locating Radiator Upper Brackets Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lift the radiator up and away from vehicle.
