Section 99 (Engine Cooling System (H4DO)): Radiator: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Attach the radiator lower cushion to the radiator lower bracket.

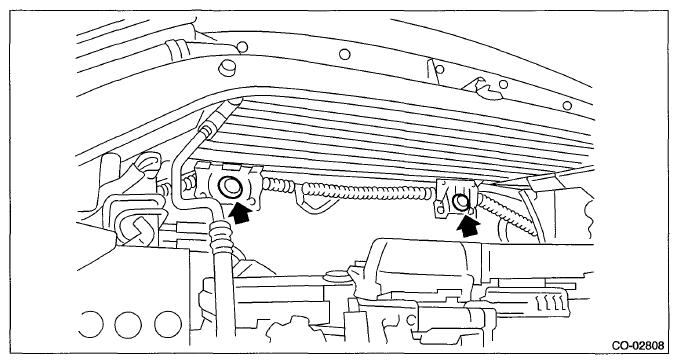

Fig 1: Locating Radiator Lower Cushion
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

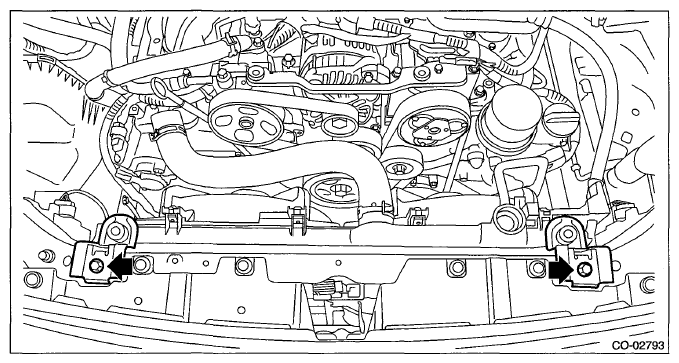

Fig 2: Locating Radiator Upper Brackets Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose to the water pipe assembly.

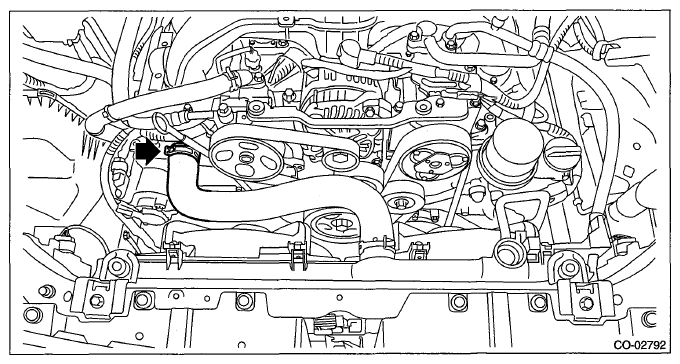

Fig 3: Locating Radiator Inlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the main fan motor assembly and the connector (B) to the sub fan motor assembly.

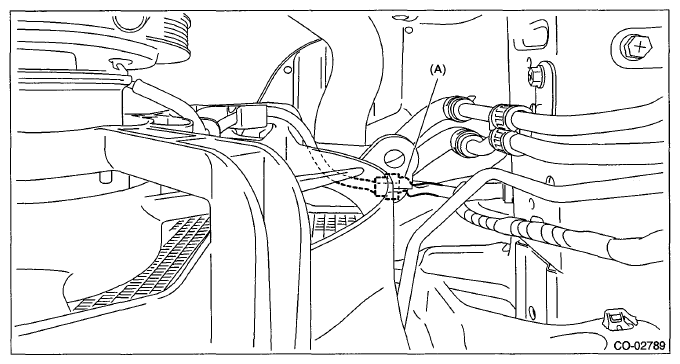

Fig 4: Main Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.

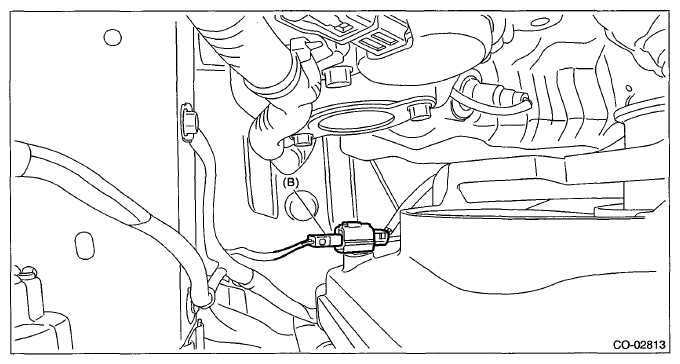

Fig 5: Sub Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. < Ref. to INSTALLATION , Reservoir Tank. >
Install the air intake duct (rear). < Ref. to INSTALLATION , Air Intake Duct. >
Lift up the vehicle.
Connect the ATF hoses to the ATF pipes. (AT model)
NOTE: Use a new ATF hose.

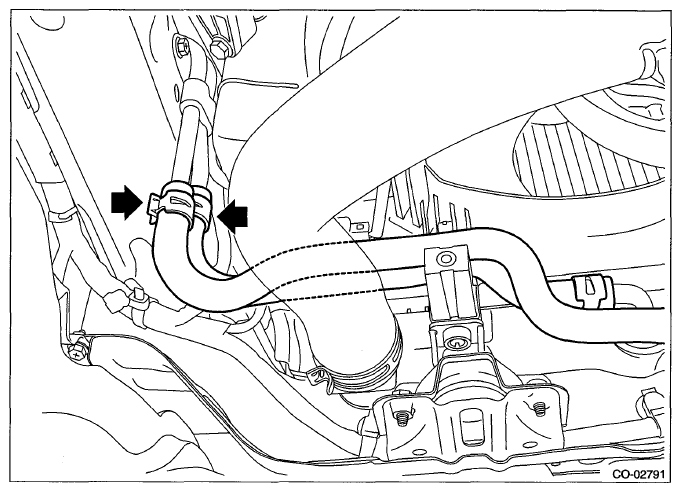

Fig 6: Locating ATF Cooler Hose Clamps
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose.

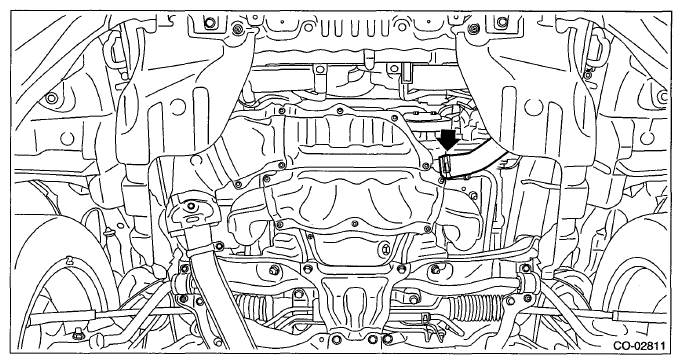

Fig 7: Locating Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the battery ground terminal.

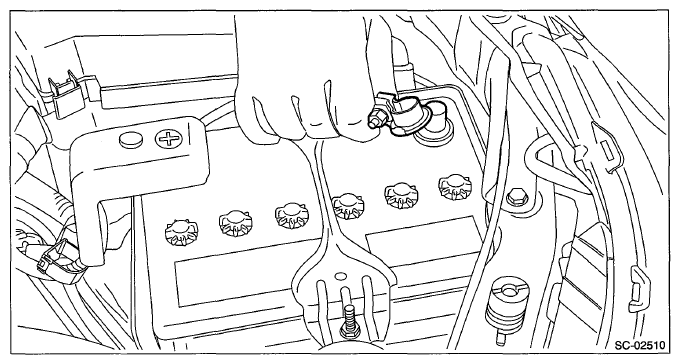

Fig 8: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt cover.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

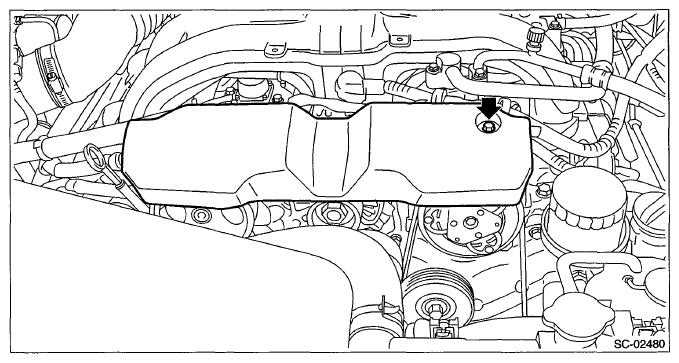

Fig 9: Locating V-Belt Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Check the ATF level. (AT model) < Ref. to INSPECTION , Automatic Transmission Fluid. >
