Headlamp Switch: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

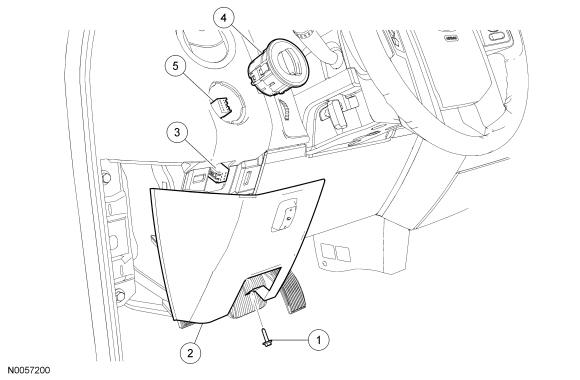

Expedition
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | LH lower instrument panel finish panel screw |
| 2 | 7804338 | LH lower instrument panel finish panel |
| 3 | - | Electrical connector (part of 14401) |
| 4 | 13D061 | Headlamp switch |
| 5 | - | Headlamp switch electrical connector (part of 14401) |

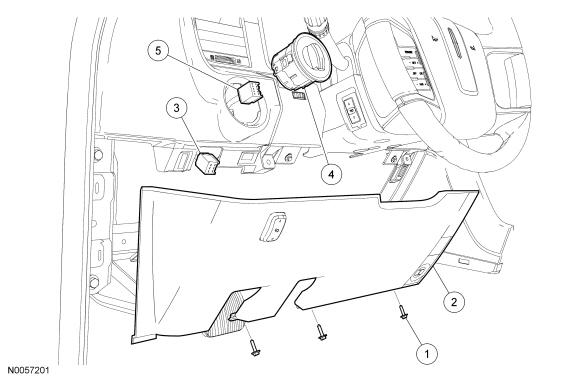

Navigator
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Steering column finish panel screws (3 required) |
| 2 | 7804459 | Steering column finish panel |
| 3 | - | Electrical connector (part of 14401) |
| 4 | 13D061 | Headlamp switch |
| 5 | - | Headlamp switch electrical connector (part of 14401) |
