Audio System/Navigation - With Sync Without Touchscreen
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

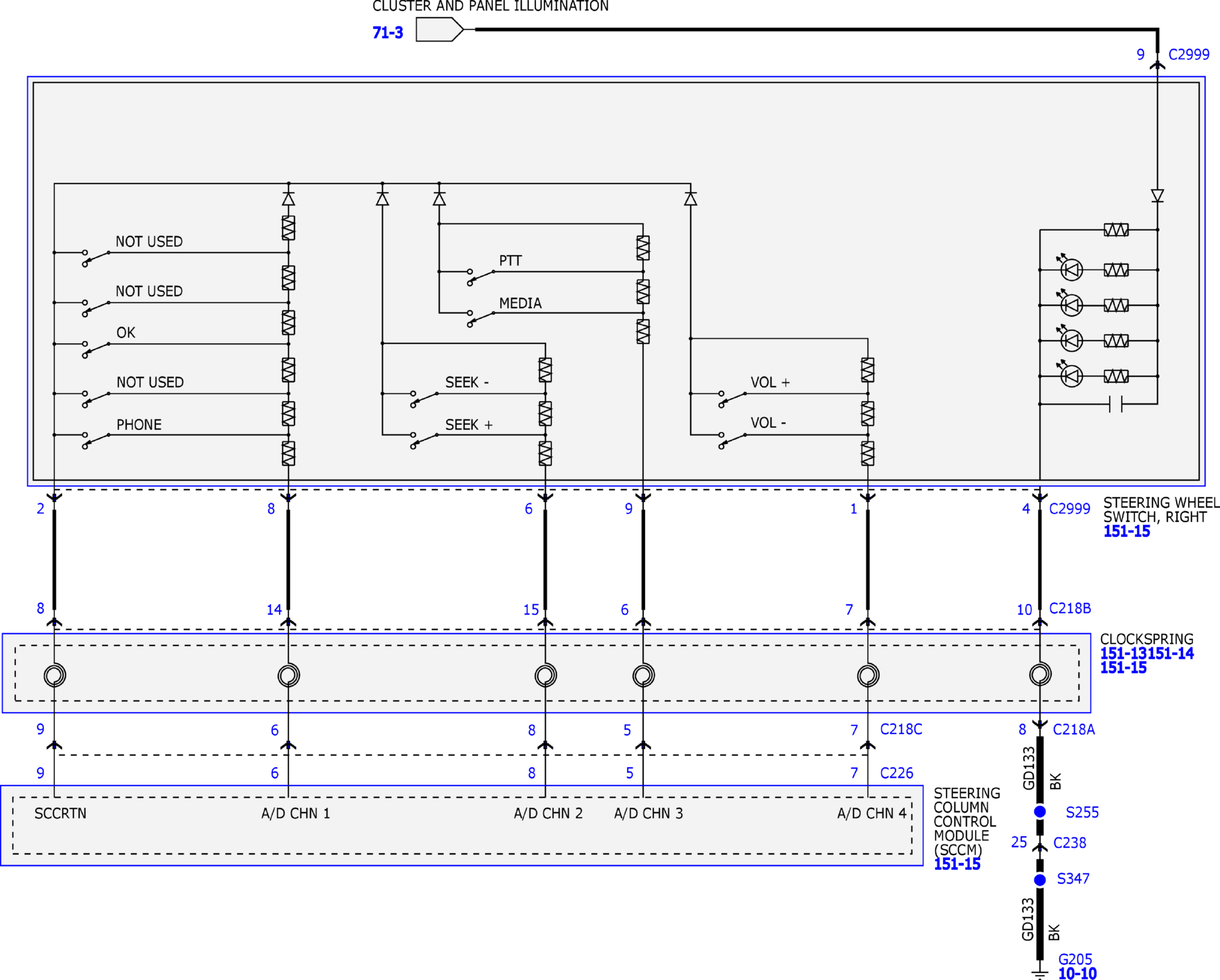

Fig 1: Audio System/Navigation - With SYNC Without Touchscreen Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY

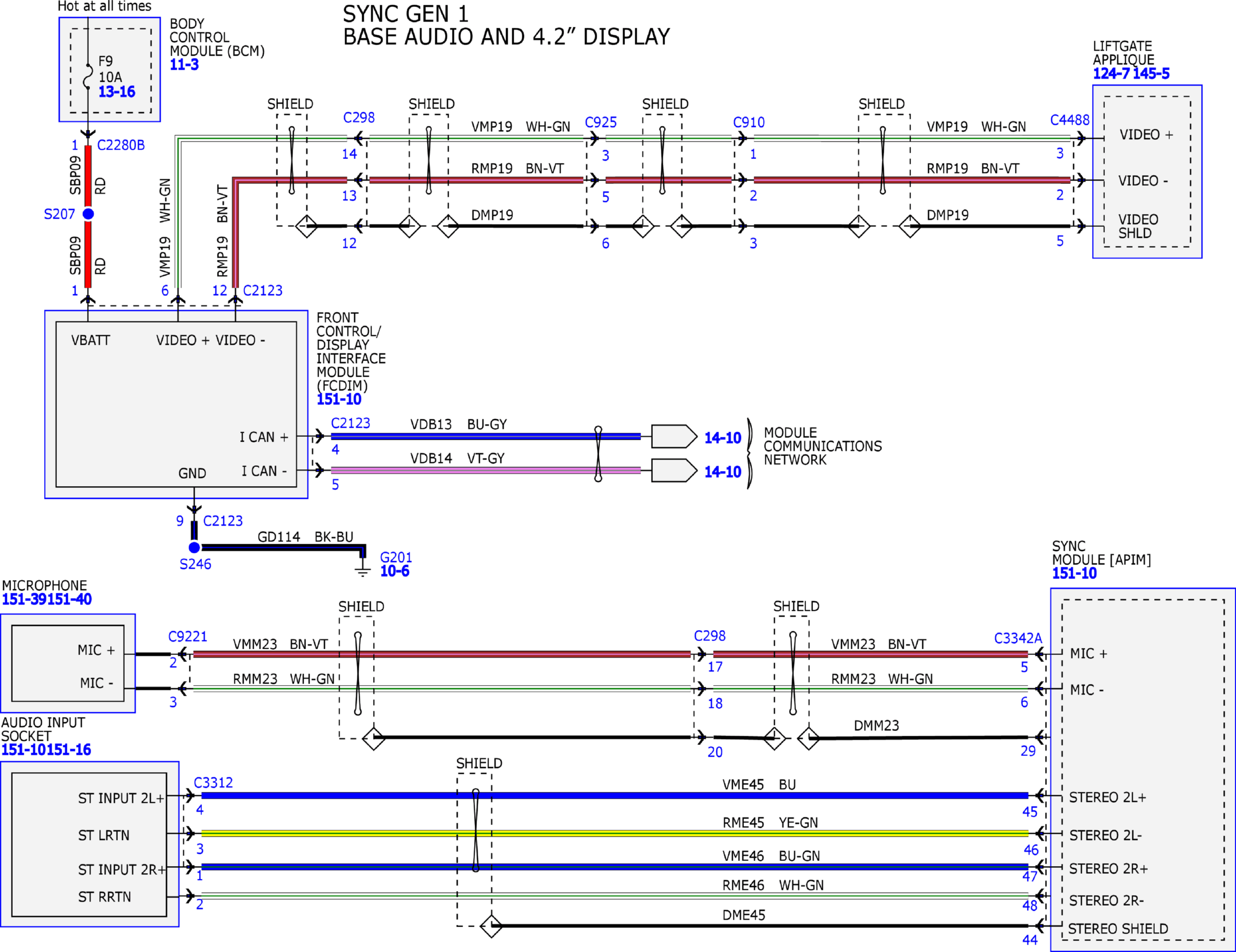

Fig 2: Audio System/Navigation - With SYNC Without Touchscreen Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY

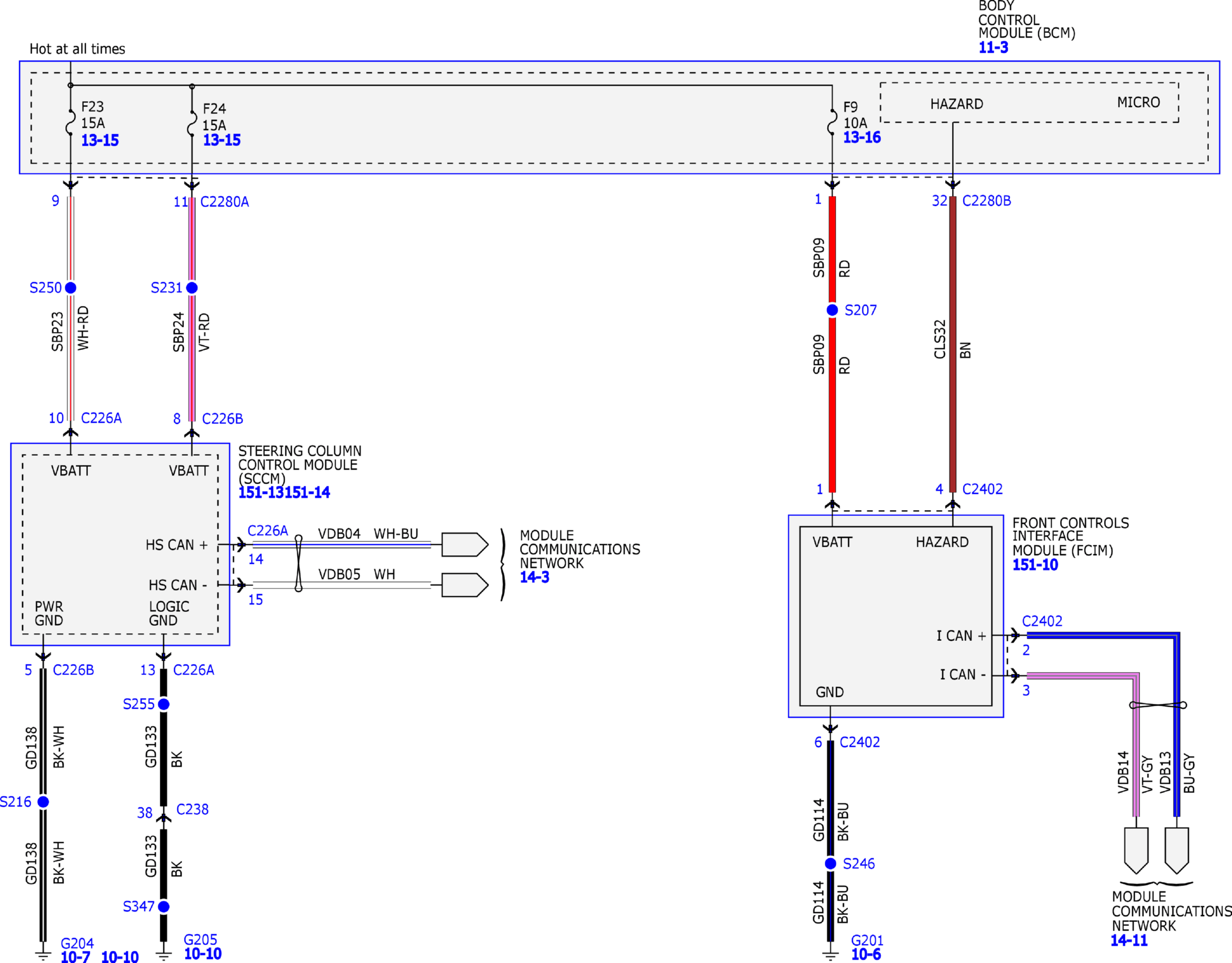

Fig 3: Audio System/Navigation - With SYNC Without Touchscreen Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY

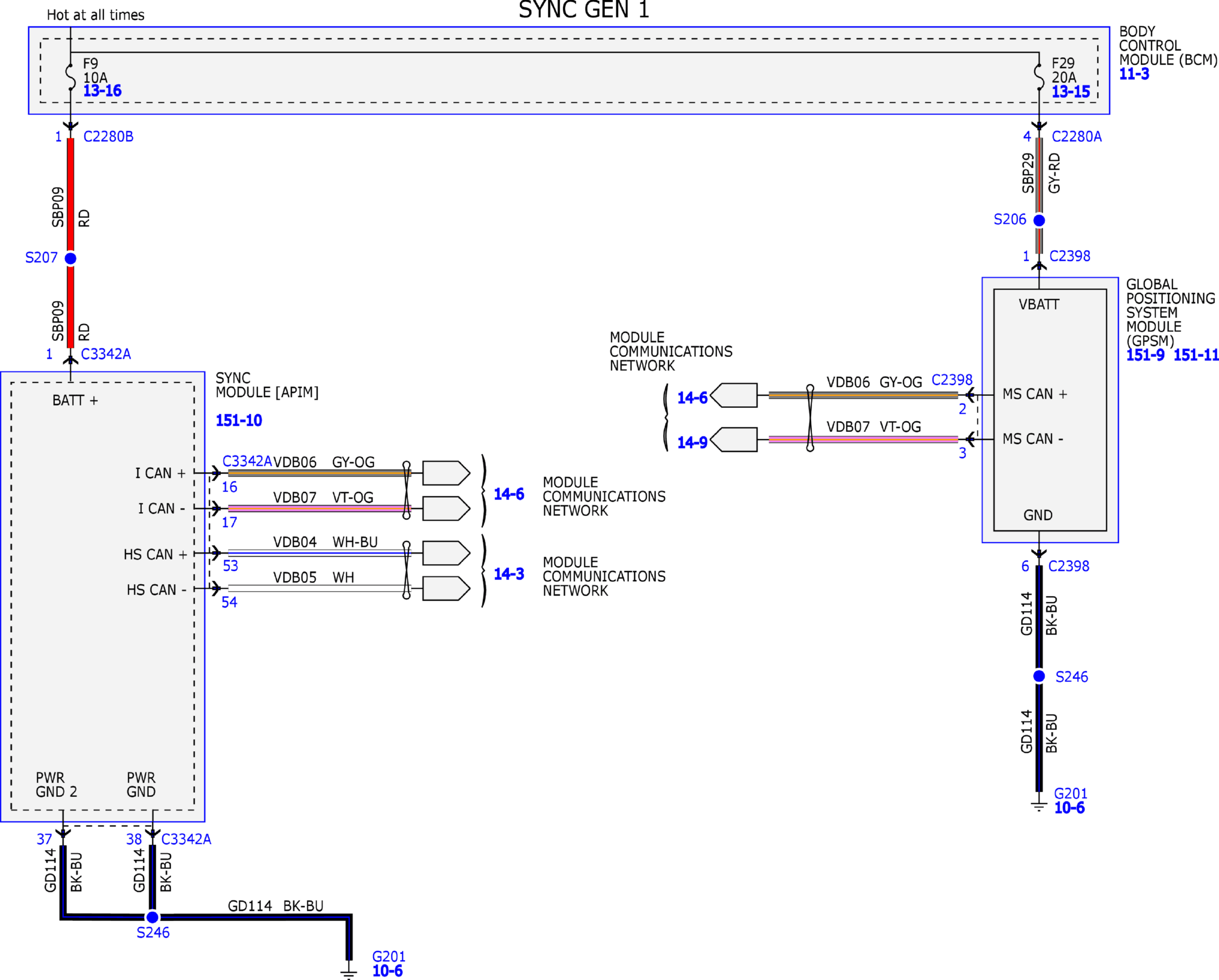

Fig 4: Audio System/Navigation - With SYNC Without Touchscreen Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY

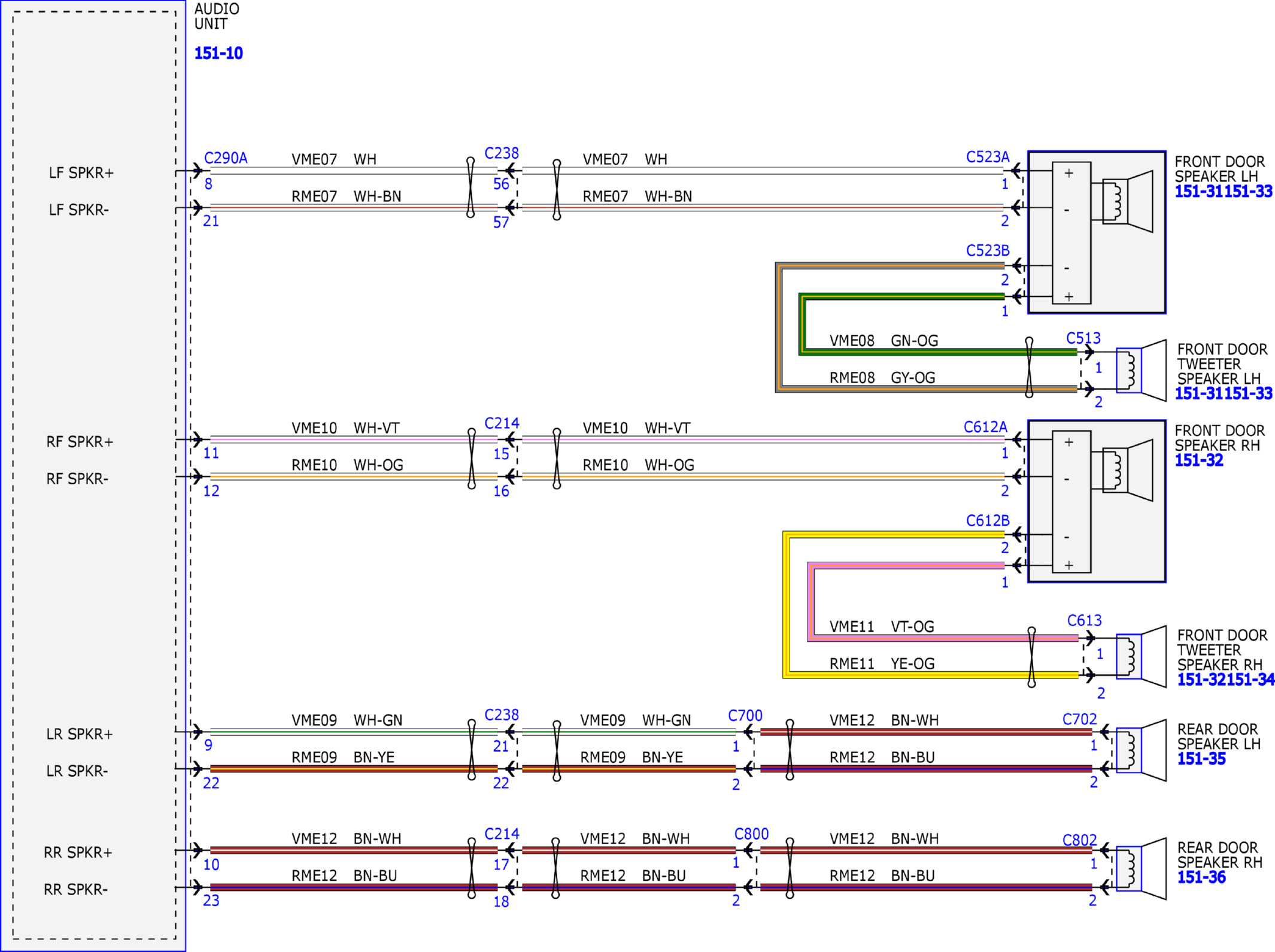

Fig 5: Audio System/Navigation - With SYNC Without Touchscreen Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY

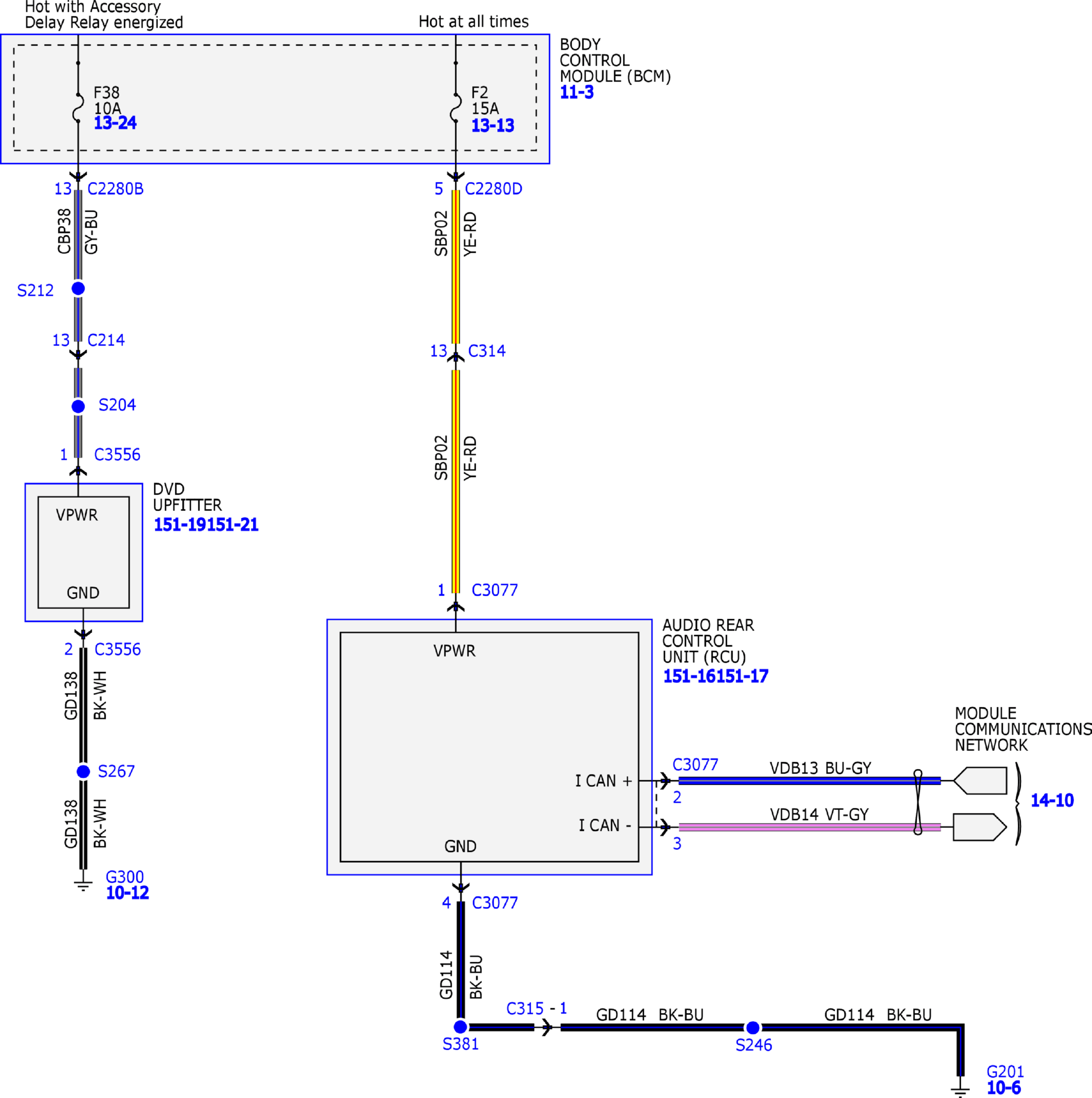

Fig 6: Audio System/Navigation - With SYNC Without Touchscreen Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY

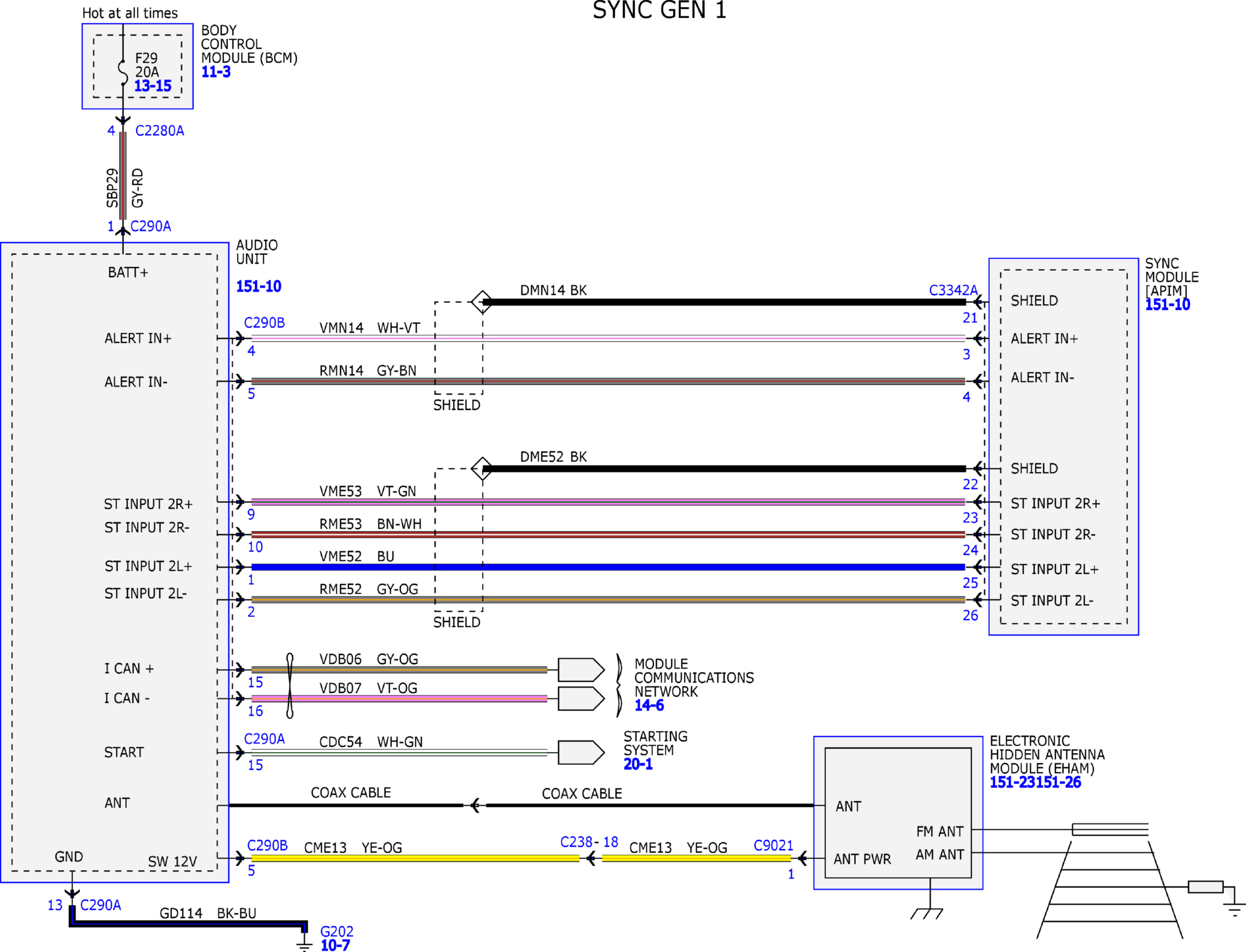

Fig 7: Audio System/Navigation - With SYNC Without Touchscreen Wiring Diagram (7 of 7)
