Intake Manifold: Assembly

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Assemble in the reverse order of disassembly.

NOTE: Use a new gasket.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

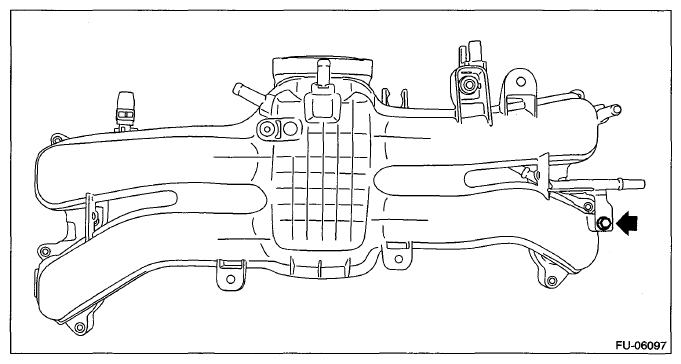

Fig 1: Locating Gasket And Mounting Bolt

Courtesy of SUBARU OF AMERICA, INC.

Connect the quick connector as shown in the illustration.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
- When it is difficult to lock the slider, check that the pipe is fully inserted.
- Make sure that the quick connector is securely connected.

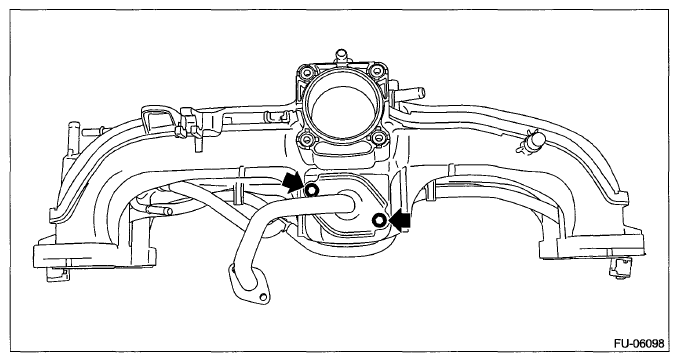

  Fig 2: Connecting Quick Connector
  Courtesy of SUBARU OF AMERICA, INC.

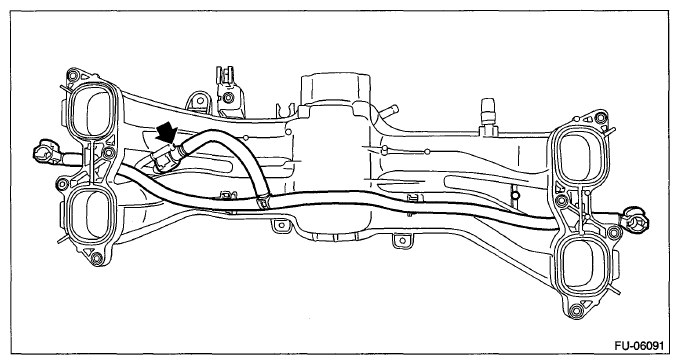

  Fig 3: Locating Fuel Delivery Pipe
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: Temporarily install the EGR pipe, and tighten it when installing the intake manifold.

  Fig 4: Locating Intake Manifold Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
