Axle Carrier Bushing: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
| Installer, Front Axle Mounting Bushing Drawbolt 205-374 (T96T-5638-H) | |
| Installer, Front Differential Mounting Bushing 204-187 (T95T-5638-AH) | |
| Installer, Wheel Hub Dust Seal 205-289 (T89P-1249-A) | |
| Remover, Front Axle Mounting Bushing Cup 205-371 (T96T-5638-E) | |
| Remover, Front Axle Mounting Bushing 205-376 (T96T-5638-K) | |
| Remover, Front Differential Housing Bushing 204-186 (T95T-5638-AH) | |
| Remover/Installer, Front Differential Housing Bushing 205-527/1 |

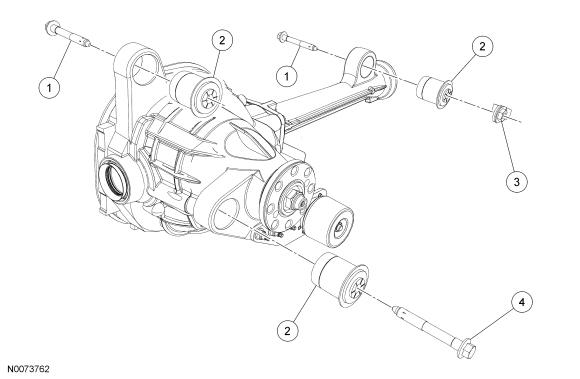

| Item | Part Number | Description |
|---|---|---|
| 1 | W712724 | Axle bushing bolts (2 required) |
| 2 | 5638 | Axle bushings (3 required) |
| 3 | W712723 | Axle bushing flagnut |
| 4 | W712743 | Axle bushing bolt |
