Liftgate Alignment

Inspection

1. 1.

   Check liftgate to body dimensions. Refer to Body Repairs .

All alignments

1. 2.

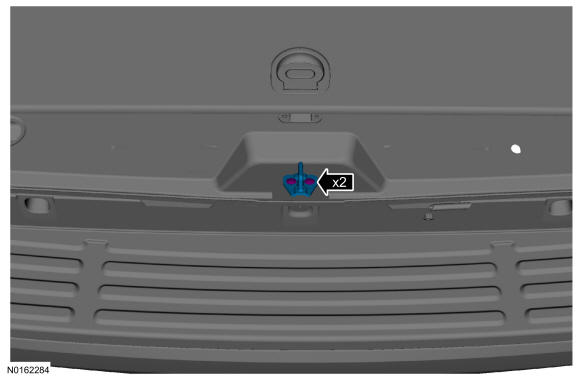

   Remove the bolts and the striker assembly.
   • To install, tighten bolts to 25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

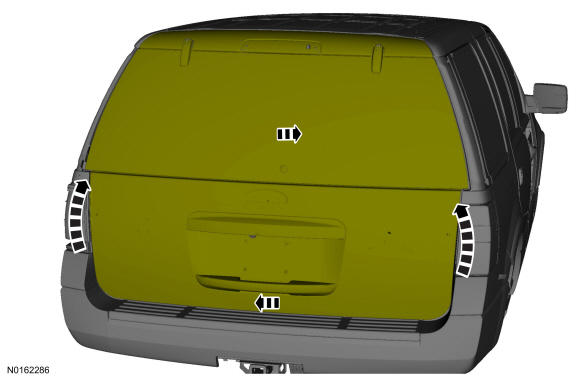

Liftgate in and out

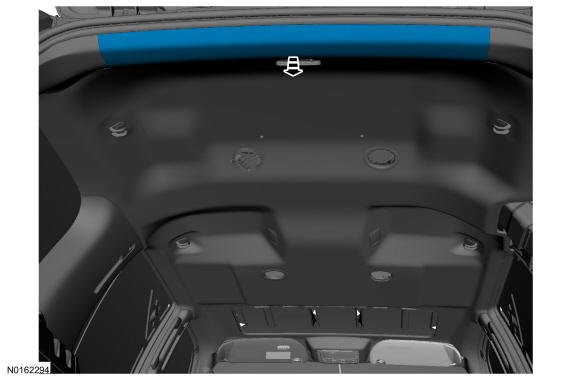

1. 3.

   Remove the upper D-pillar trim panel.

Courtesy of FORD MOTOR COMPANY

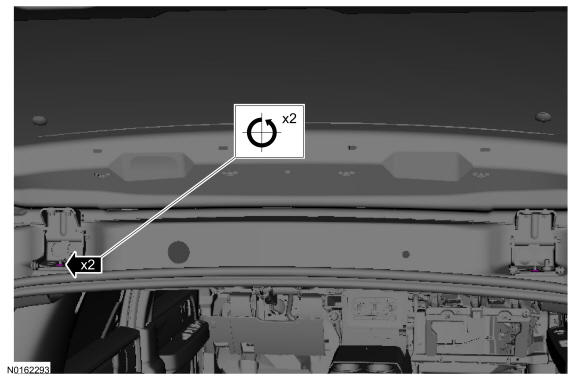

1. 4.

   On both sides, loosen the nut and bolt 2 turns to permit movement of the liftgate.
   • To install, tighten nut to 23 Nm (17 lb-ft).
   • To install, tighten bolt to 30 Nm (22 lb-ft).

Courtesy of FORD MOTOR COMPANY

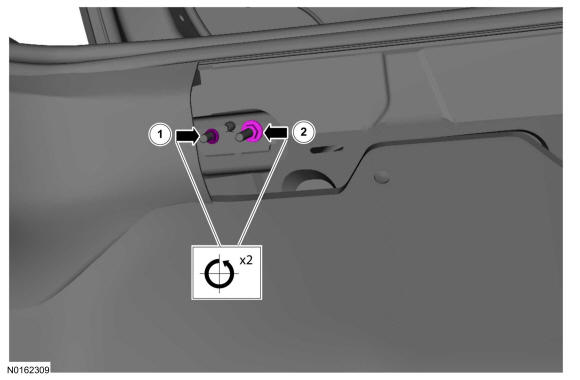

1. 5.

   On both sides, loosen the nab bolt 2 turns to permit movement of the liftgate.
   • To install, tighten nab bolt to 9 Nm (80 in-lb).

Courtesy of FORD MOTOR COMPANY

1. 6.

   Adjust the liftgate to specification. Refer to Body Repairs .

Courtesy of FORD MOTOR COMPANY

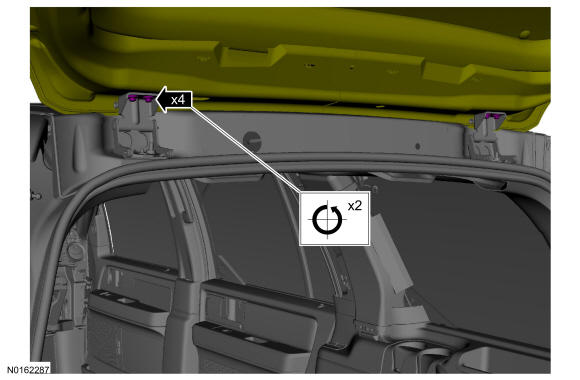

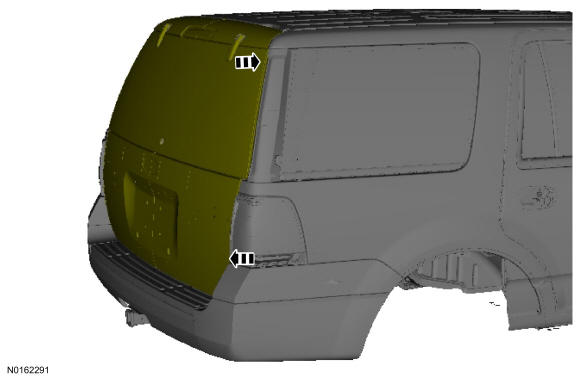

Liftgate left and right, up and down alignment

1. 7.

   Loosen the bolts 2 turns to permit movement of the liftgate.
   • Tighten the bolts to 28 Nm (21 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 8.

   Adjust the liftgate to specification. Refer to Body Repairs .

Courtesy of FORD MOTOR COMPANY

All alignments

1. 9.

   Check the body to liftgate dimensions. Refer to Body Repairs

1. 10.

   Install the removed components.

1. 11.

   For vehicles equipped with power liftgate, initialize the power liftgate. For additional information, refer to Power Liftgate Initialization .
