Door Alignment - Front

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left Hand(LH) shown, Right Hand(RH) similar.

Inspection

1.

Check front door to body dimensions. Refer to Body Repairs

All alignments

NOTE: Removal steps in this procedure may contain installation details.

2.

Remove the bolts and the striker assembly.
- To install, tighten the bolts to 25 Nm (18 lb-ft).

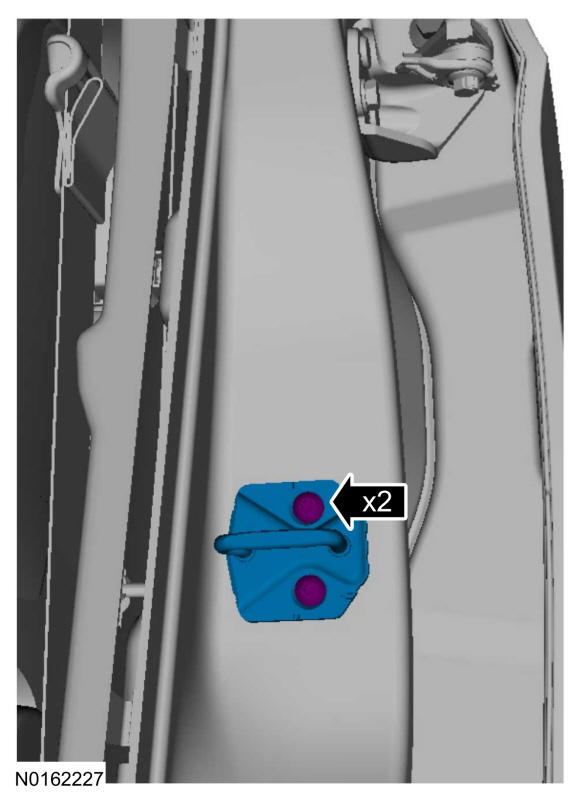

GFD137120

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

3.

Loosen the bolts 2 turns to permit movement of the door.
- To install, tighten the bolts to 30 Nm (22 lb-ft).

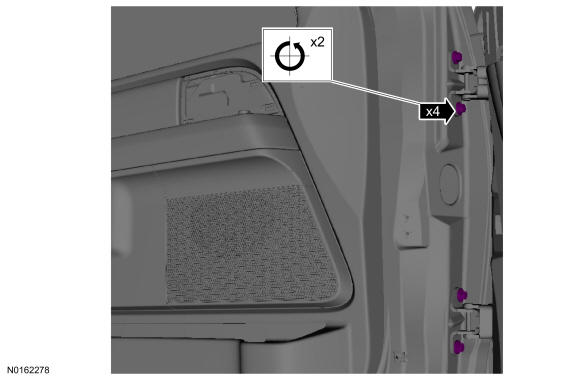

GFD137121

Courtesy of FORD MOTOR COMPANY

4.

Adjust the door to specification. Refer to Body Repairs .

GFD137122

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

5.

Loosen the upper bolts 2 turns to permit movement of the door.
- To install, tighten the bolts to 30 Nm (22 lb-ft).

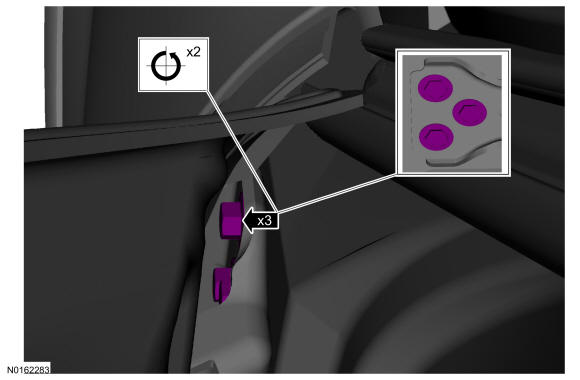

GFD137123

Courtesy of FORD MOTOR COMPANY

6.

Loosen the lower bolts 2 turns to permit movement of the door.
- To install, tighten the bolts to 30 Nm (22 lb-ft).

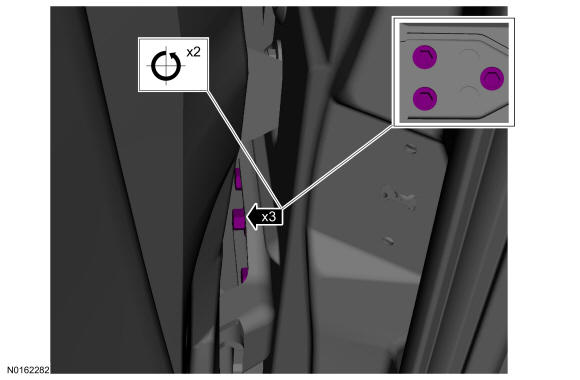

GFD137124

Courtesy of FORD MOTOR COMPANY

7.

Adjust the door to specification. Refer to Body Repairs .

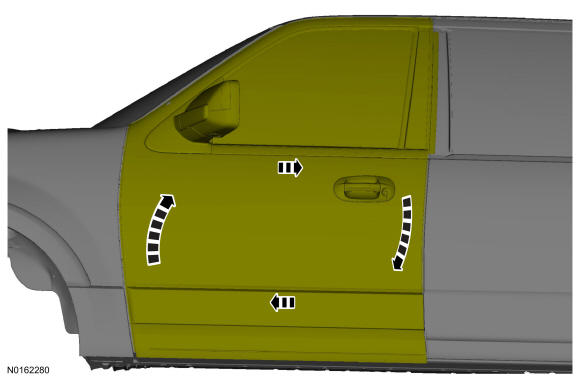

GFD137125

Courtesy of FORD MOTOR COMPANY

All alignments

8.

Loosen the bolts enough to permit movement of the striker assembly.
- To install, tighten the bolts to 25 Nm (18 lb-ft).

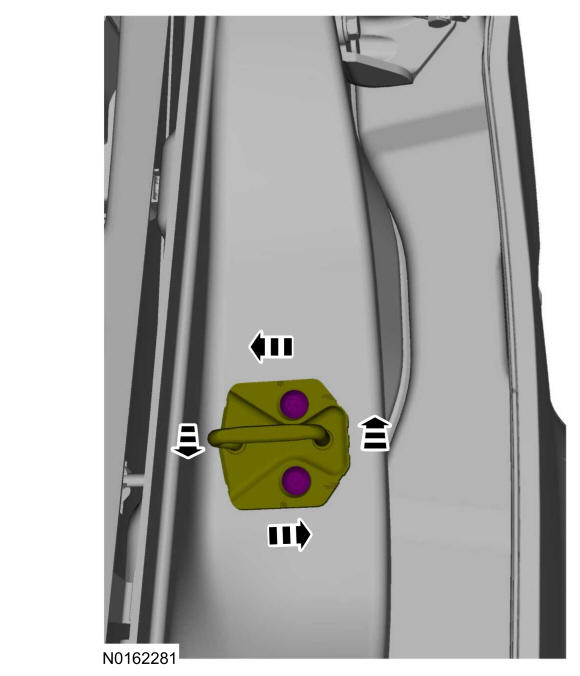

GFD137126

Courtesy of FORD MOTOR COMPANY

9.

Check body to front door dimensions. Refer to Body Repairs

10.

Install the removed components.
