Removal And Installation: Horn: Notes
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
Expedition shown, Navigator similar.

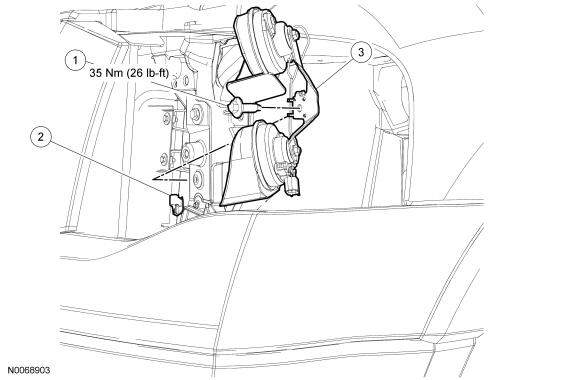

| Item | Part Number | Description |
|---|---|---|
| 1 | W711851 | Horn bolt |
| 2 | - | Horn electrical connector (part of 12A581) |
| 3 | 13832 | Horn |
