Thermostatic Expansion Valve: Removal
WARNING: This page is about a different car, the 2017 Ford Expedition and 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the Thermostatic Expansion Valve(TXV) manifold assembly. Refer to Climate Control System General Information and Diagnostics .
- 2.NOTE: Make sure that all openings are sealed.

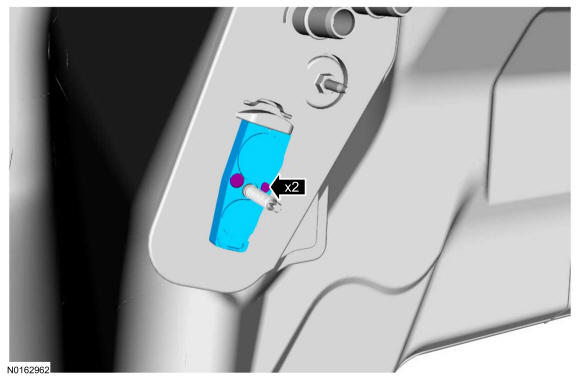

Remove the TXV bolts and remove the TXV.
- Discard the gasket seals.
- Tighten to 8 Nm (71 lb-in).
