Desiccant Bag: Removal
WARNING: This page is about a different car, the 2017 Ford Expedition and 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Installation of a new desiccant bag is not required when repairing the A/C system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier desiccant bag. It is not necessary to add additional dye to the refrigerant system, the new receiver/drier desiccant bag comes with a new dye pellet. Damage to the receiver/drier desiccant bag includes physical damage to the receiver/drier desiccant bag or moisture contamination. Moisture contamination results only from a complete loss of refrigerant and equalization of the refrigerant system pressure with atmospheric pressure for a period longer than one hour. If even a slight amount of positive refrigerant pressure is present in the system before repairs are carried out, the receiver/drier desiccant bag should not be replaced.
- 1.
Remove the condenser core. Refer to Condenser Core .

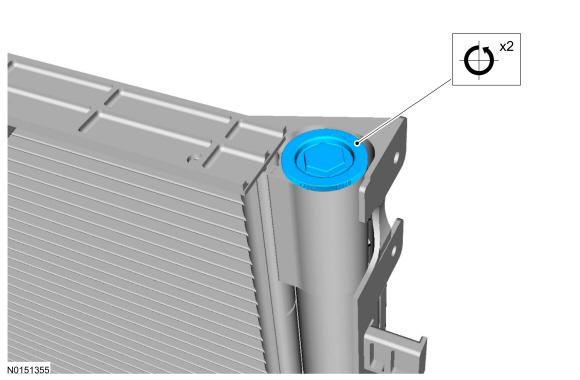

- 3.

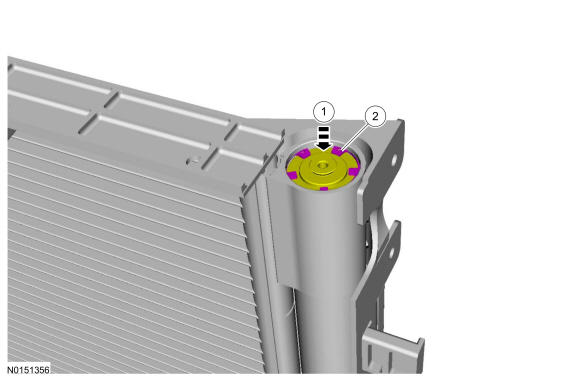

Remove the receiver/drier plug snap ring.- 1.
Push the receiver/drier plug towards the top of the condenser.
- 2.
Remove the receiver/drier plug snap ring.

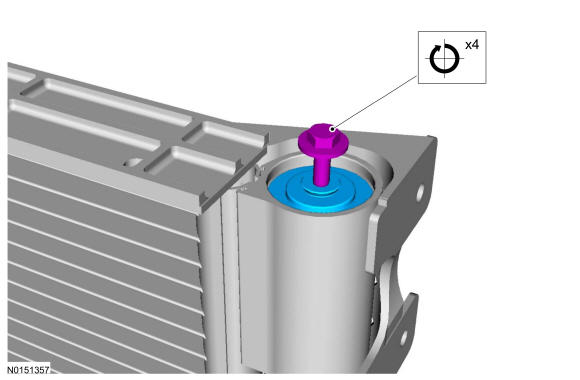

- 1.
- 5.NOTE: Make sure that all openings are sealed.

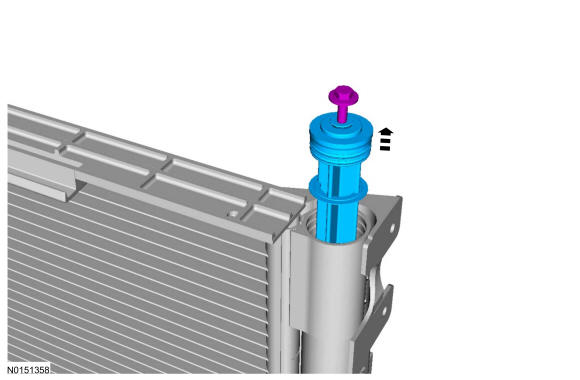

Remove the receiver/drier plug and the desiccant bag.
