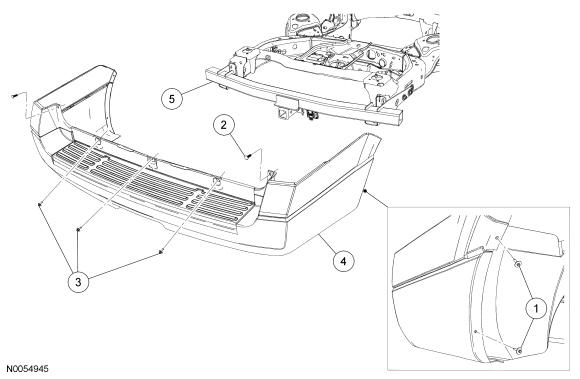

Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
Expedition shown, Navigator similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W711401 | Rear fender splash shield screws (4 required) |
| 2 | W708035 | Pin-type retainer (2 required) |
| 3 | W705132 | Rear bumper cover bolts (3 required) |
| 4 | 17K835 | Rear bumper cover |
| 5 | 17775 | Rear bumper |
