Driveshaft - Front: Notes
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

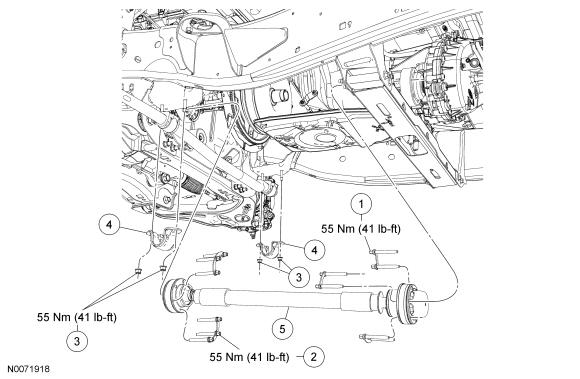

| Item | Part Number | Description |
|---|---|---|
| 1 | 4B496 | Rear flange-to-transfer case flange bolt and washer kits |
| 2 | 4B496 | Front flange-to-pinion flange bolt and washer kits |
| 3 | W520113 | Stabilizer bar bracket nuts (4 required) |
| 4 | 3B353 | Stabilizer bar brackets (2 required) |
| 5 | 4A376 | Driveshaft |
