Differential Carrier: Notes
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Special Tool(s)
| Adapter for Differential Housing Spreader 205-368 (T96T-4000-A) | |
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) | |
| Gauge, Clutch Housing 308-021 (T75L-4201-A) | |
| Holding Fixture, Transmission 307-003 (T57L-500-B) | |
| Remover, Transmission Fluid Pump 307-397 | |
| Slide Hammer 100-001 (T50T-100-A) | |
| Spreader, Differential Carrier 205-001 (TOOL-4000-E) | |
| Spreader, Differential Housing (Plate) 205-335 (T93P-4000-A) (RH) |
Material
| Item | Specification |
| Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
| Motorcraft ® Premium Long-Life Grease XG-1-E1 | ESA-M1C75-B |
| Motorcraft ® Silicone Gasket and Sealant TA-30 | WSE-M4G323-A4 |

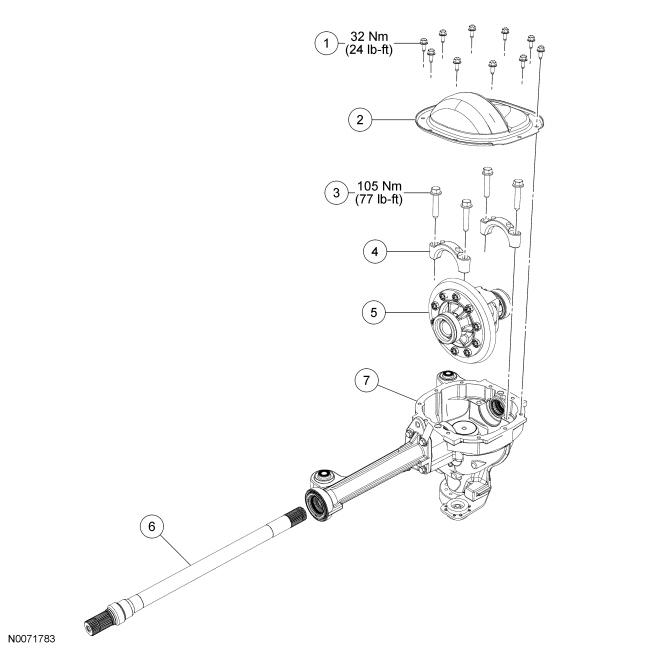

| Item | Part Number | Description |
|---|---|---|
| 1 | 390919 | Differential housing cover bolt (10 required) |
| 2 | 3N136 | Differential housing cover |
| 3 | - | Differential bearing cap bolt (part of 3A412) (4 required) |
| 4 | - | Differential bearing cap (part of 3A412) (2 required) |
| 5 | 3C202 | Differential assembly |
| 6 | 3A380 | Intermediate axle shaft |
| 7 | 3A412 | Differential housing |
