Differential Case: Assembly
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Using general equipment install the new differential side bearings. General Equipment: Hydraulic Press
- 2.

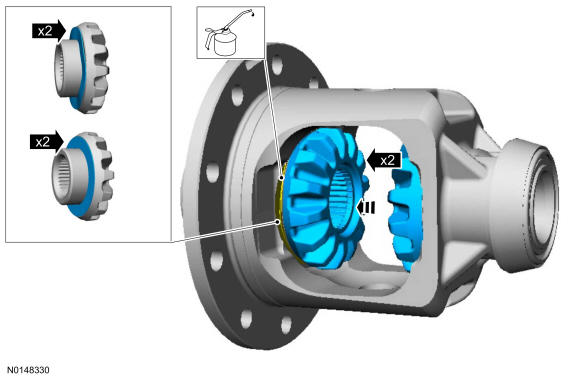

Install the differential side gears in the differential carrier.- 1.
Lubricate the differential thrust washer and differential wave washer with axle lubricant.
- 2.
Install the differential thrust washer and differential wave washer on the differential side gears.
- 3.
Install the differential side gear assemblies into the differential carrier.
- 1.
- 3.
With the special tool installed, lubricate the differential pinion thrust washers and the differential pinion gears with axle lubricant and assemble them.
- 4.
Using the special tool, rotate the differential pinion gears to align with the differential pinion shaft bore and remove the special tool.
- 6.NOTE: If a new pinion shaft bolt is unavailable, coat the threads with sealer.
Install the new differential pinion shaft bolt.
- Tighten to 30 Nm (22 lb-ft).
- 7.
Install the differential ring gear. General Equipment: Hydraulic press- 1.
Place the differential ring gear on the differential assembly.
- 2.
Hand-start 3 ring gear bolts to align the holes in the differential ring gear and the differential assembly.
- 3.
Place the differential carrier and differential ring gear onto the press bed blocks with the differential ring gear teeth facing downward.
- 4.
Press the differential ring gear into place.
- 1.
- 9.
Install the differential carrier. Refer to Differential Carrier .
