Console - Front, Floor: Notes
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

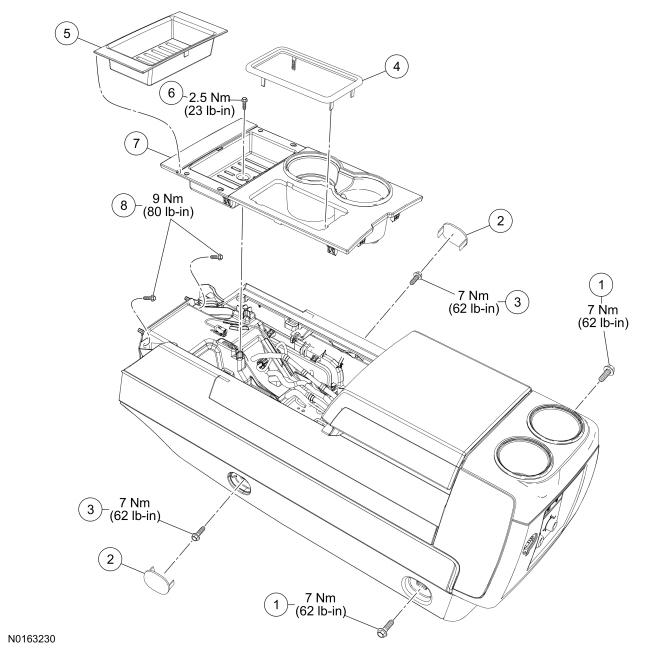

| Item | Part Number | Description |
|---|---|---|
| 1 | W710806 | Front floor console rear bolts (2 required) |
| 2 | 78045H88 | Front floor console bolt covers |
| 3 | W710806 | Front floor console front bolts (2 required) |
| 4 | 78045K08 | Selector lever trim ring |
| 5 | 045G34B | Front floor console utility tray mat |
| 6 | W707382 | Front floor console utility tray screw |
| 7 | 78045A76 | Front floor console upper finish panel |
| 8 | W716533 | Front floor console front screws (2 required) |
| 9 | 78045A06 | Front floor console |
