Safety Canopy: Notes
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

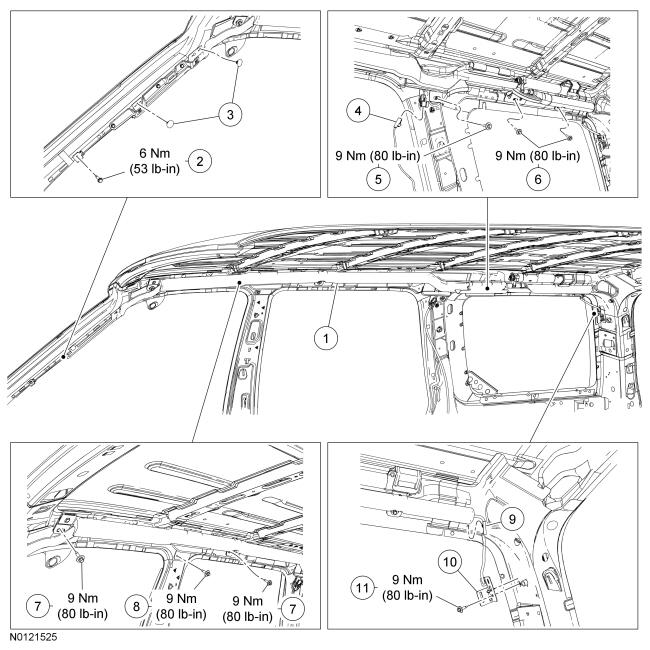

Expedition shown, other models similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH RH/042D95 LH | Safety Canopy ® module |
| 2 | - | Front tether cord bracket bolt (part of 042D94/95) |
| 3 | - | Front tether pin-type retainers (part of 042D94/95) |
| 4 | - | Safety Canopy ® module electrical connector (part of 14A005) |
| 5 | W706681 | Safety Canopy ® module C-pillar bolt |
| 6 | W706681 | Safety Canopy ® module rear bolts |
| 7 | W706681 | Safety Canopy ® module front bolts |
| 8 | W706681 | Safety Canopy ® module B-pillar bracket bolt |
| 9 | - | Safety Canopy ® module rear tether cord routing clip pin-type retainer (part of 042D94/95) |
| 10 | - | Safety Canopy ® module rear tether cord anchor bracket (part of 042D94/95) |
| 11 | W706681 | Safety Canopy ® module rear tether anchor bracket bolt |
