Removal And Installation: Clockspring: Installation
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: If installing a new clockspring, do not remove the clockspring anti-rotation key until the steering wheel is installed. If the anti-rotation key has been removed before installing the steering wheel, the clockspring must be centered. Failure to follow this instruction may result in component damage and/or system failure.
To install, reverse the removal procedure.
- 2.NOTE: This step is only necessary if adjustment is required.
Adjust the clockspring. For additional information, refer to Clockspring Adjustment .

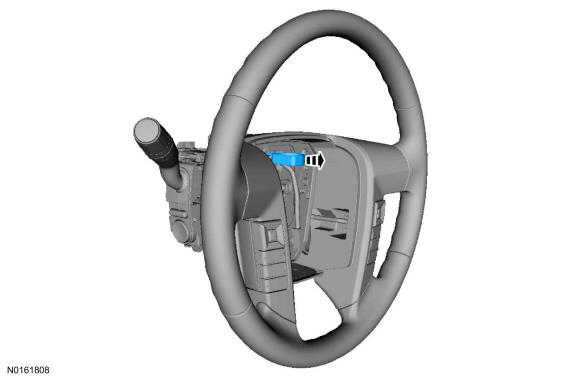

- 3.NOTE: To install, remove the anti-rotation key from a new clockspring after installing the steering wheel.
Install the steering wheel. For additional information, refer to Steering Column .
