Front Hood Damper Stay Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Always perform works such as inspections and maintenance with both damper stays attached.
CAUTION:
- At the inspection and general maintenance, do not detach the damper stays.

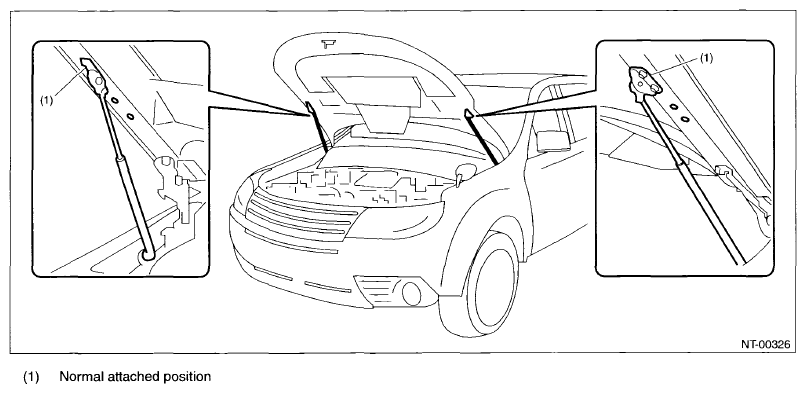

  Fig 1: Front Hood Damper Stay Position
  Courtesy of SUBARU OF AMERICA, INC.
When wider hood opening is necessary, set the damper stay below as shown in the illustration.
Tightening torque:

< Ref. to FRONT HOOD , COMPONENT, General Description. >
CAUTION:
- Do not leave one side of damper stay removed.
- Always perform works such as inspections and maintenance with both damper stays attached.
- The hood cannot be closed with the damper stay on the full open side. When it is necessary to close, tie the hood striker and the radiator panel with a string etc. to fix them.
- After work, set the damper stays back to the normal position and tighten the bolts to the specified torque.

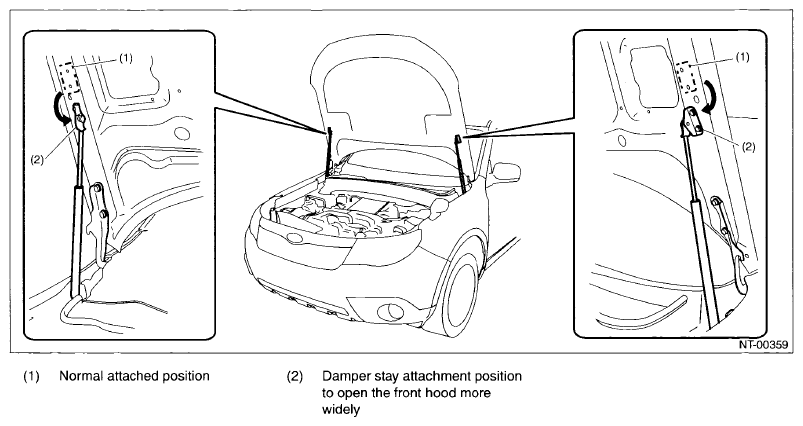

  Fig 2: Front Hood Damper Stay Position (Wider Hood Opening)
  Courtesy of SUBARU OF AMERICA, INC.
