How to Use This Information: Component

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Illustrations are provided for each component. The information necessary for repair work (tightening torque, grease up points, etc.) is described on these illustrations. Information is described using symbol. .

Example:

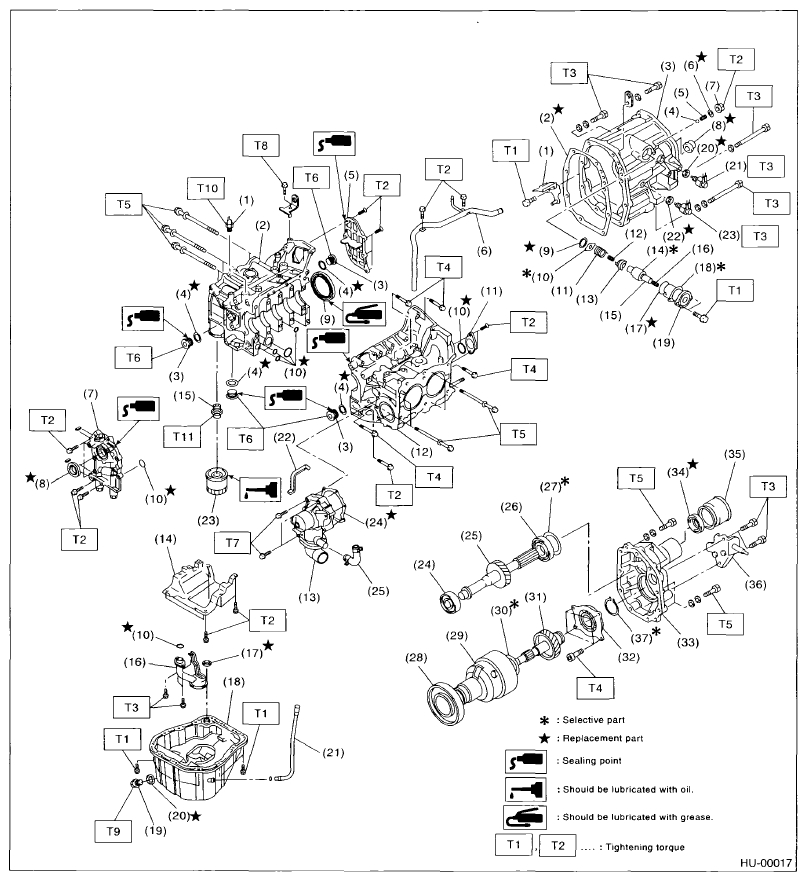

Fig 1: Identifying Engine Assembly Components

Courtesy of SUBARU OF AMERICA, INC.
