Mode Select Switch (MSS): Removal

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Navigator

1.

NOTE: The Mode Select Switch(MSS) is not serviceable separately.

Refer to FCIM, Information and Entertainment Systems - THX Audio System .

Expedition

2.

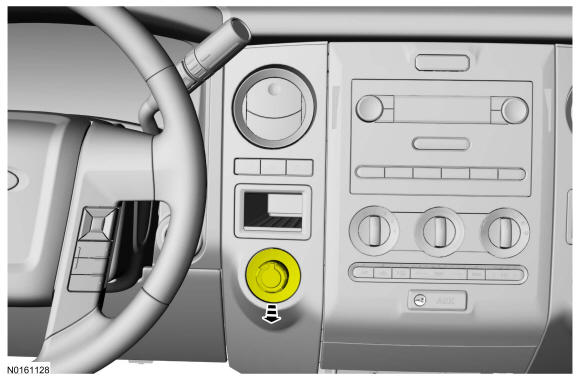

Carefully pry the Mode Select Switch(MSS) from the instrument panel.

GFD136465

Courtesy of FORD MOTOR COMPANY

3.

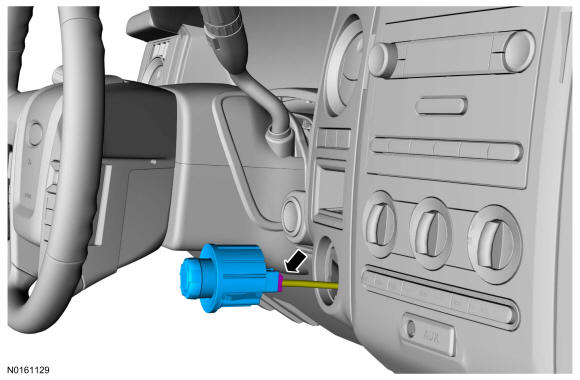

Disconnect the MSS harness connector and remove the switch.

GFD136466

Courtesy of FORD MOTOR COMPANY
