Exterior Rear View Mirror Switch
WARNING:
This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exterior Rear View Mirror Switch (1 of 2)
Courtesy of FORD MOTOR COMPANY

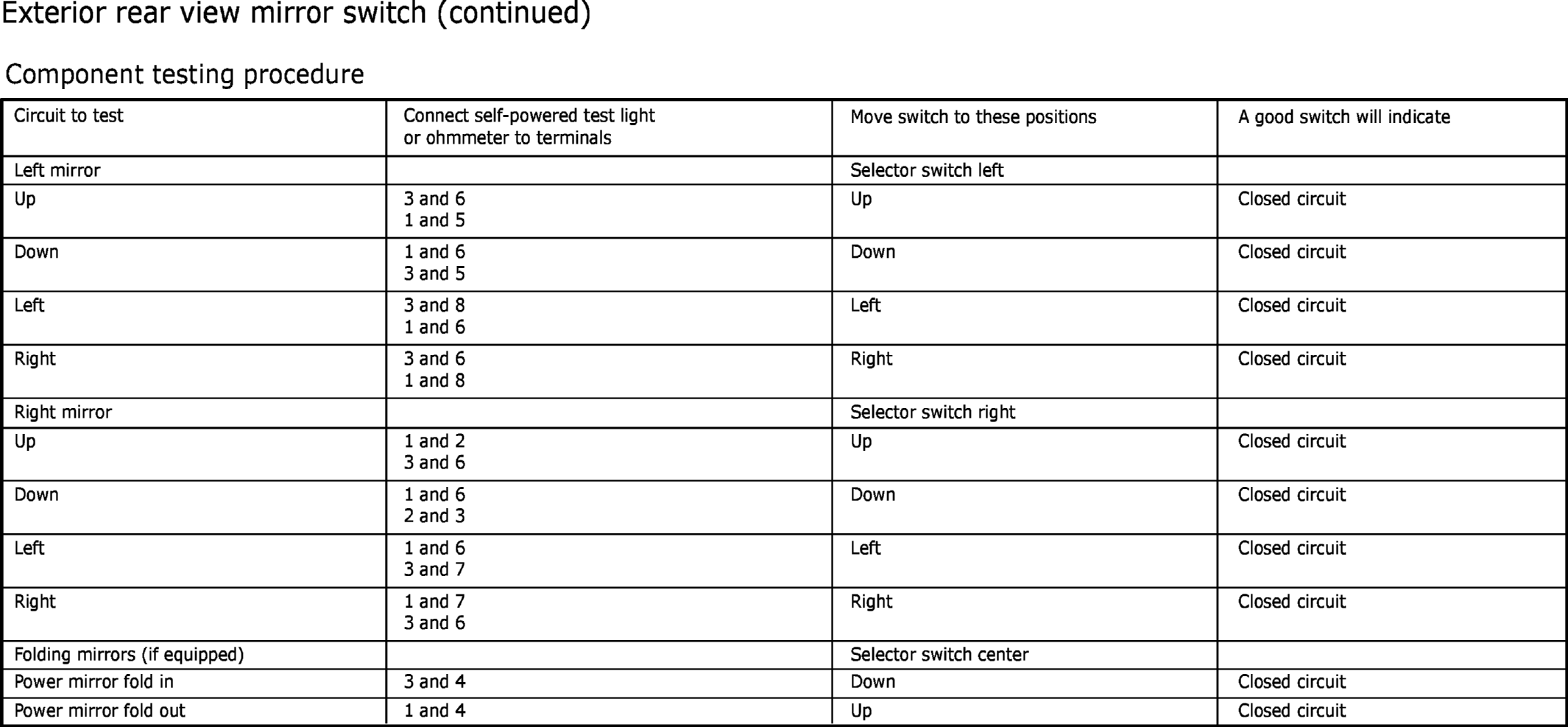

Fig 2: Exterior Rear View Mirror Switch (2 of 2)
Courtesy of FORD MOTOR COMPANY
