Abs/Electronic Stabilization Program (Esp) Overview, BOSCH
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
The Bosch ESP 8.1 has the following functions:
- ABS - Antilock braking system
- ASR - Anti-slip regulation
- EBD - Electronic brake pressure distribution
- EDL - Electronic differential lock
- ESP - Electronic stabilization program
- FBS - Fading brake support
- HBA - Hydraulic brake assist
- MSR - Engine drag torque regulation
- Emergency braking signal
- Brake rotor cleaning
- Trailer stabilization
The brake system is distributed diagonally. The vacuum brake servo unit boosts the brakes pneumatically.
NOTE:
ABS malfunctions do not affect the brake system and the booster. Conventional brake system stays operative even without ABS. A change in braking behavior should be checked. When the ABS warning lamp comes on the rear wheels can lock-up early when braking!

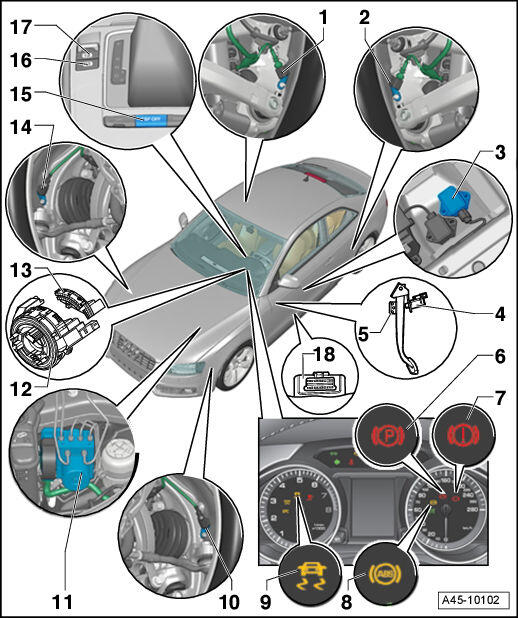

Malfunction sources are reduced by direct connection of components named. The components are replaced instead of repaired.
- Right Rear ABS Wheel Speed Sensor -G44-
- Removing and Installing, refer to RIGHT REAR ABS WHEEL SPEED SENSOR -G44- AND LEFT REAR ABS WHEEL SPEED SENSOR -G46-
- Can be tested in "guided fault finding" with the vehicle diagnostic tester VAS 5051B or VAS 5052.
- Left Rear ABS Wheel Speed Sensor -G46-
- ESP-Sensor Unit -G419-
- Component location: under the left seat.
- Removing and Installing, refer to ESP SENSOR UNIT -G419- .
- 9 Nm
- Combined transverse acceleration sensor G200, rotation rate sensor G202 and longitudinal acceleration sensor G251.
- Can be tested in "guided fault finding" with the vehicle diagnostic tester.
- Observe installation instructions
- Check the arrow in the direction of travel when installing.
- Brake Lamp Sensor
- Component location: on brake pedal.
- Removing and Installing, refer to BRAKE LAMP SENSOR .
- Can be tested in "guided fault finding" with the vehicle diagnostic tester VAS 5051B or VAS 5052
Cannot be reused after removal.
- Brake Pedal
- With bracket for the brake lamp sensor.
- Removing and Installing, Manual Transmission, refer to BRAKE PEDAL, MANUAL TRANSMISSION .
- Removing and Installing, Automatic Transmission, refer to BRAKE PEDAL, AUTOMATIC TRANSMISSION .
- Electromechanical Parking Brake Indicator Lamp
- Located in the tachometer.
- Lights up when the parking brake is engaged and the ignition is switched on.
- Lights up for 20 seconds when the parking brake is engaged and the ignition is switched off.
- Blinks after engaging the parking brake if the brake pressure is not sufficient to prevent the vehicle from rolling.
- Brake System Indicator Lamp -K118-
- Located in the tachometer.
- Turns on with the ABS indicator lamp when the ABS system malfunctions.
- Blinks when the brake fluid is too low.
- Blinks when there is a malfunction in the brake system.NOTE:
The malfunction is indicated more precisely when the "SET button" in the instrument cluster is pressed.
- ABS Indicator Lamp -K47-NOTE:
The indicator lamp monitors the ABS and the Electronic Differential Lock (EDL).
- Component location: in the tachometer.
- Lights up for several seconds when ignition is switched on and goes out after an automatic ABS system self-check if there are no malfunctions in the ABS system.
- There is an ABS malfunction if the indicator light:
- Does not light up when ignition is switched on.
- Does not go out after a few seconds.
- Lights up while driving.
- ABS malfunctions have no effect on the brake system. However, a change in braking behavior should be checked.NOTE:
The Electronic Differential Lock (EDL) and ABS work together. The ABS indicator light lights up when the EDL malfunctions.
- ASR/ESP Indicator Lamp -K155-
- Component location: in the tachometer.
- Blinks when driving if ESP/ASR engages regularly.
- Comes on when ignition is switched on and goes out after a short self-check.
- Comes on if there is an ESP system malfunction.
- Comes on if there is an ABS system malfunction because ESP and ABS work together.
- Comes on when the ASR is switched off.
- Comes on during sensor programming if:
- The battery was disconnected and connected.
- Vehicle was started with jump start.
- The battery is too weak.
- After the sensor programming procedure, the ESP light goes out after driving a short distance.
- Left Front ABS Wheel Speed Sensor -G47-
- Removing and Installing, refer to RIGHT FRONT ABS WHEEL SPEED SENSOR -G45- AND LEFT FRONT ABS WHEEL SPEED SENSOR -G47- .
- Can be tested in "guided fault finding" with the vehicle diagnostic tester VAS 5051B or VAS 5052.
- ABS Hydraulic Unit with ABS Control Module -J104-
- Removing and Installing, refer to ABS HYDRAULIC UNIT -N55- WITH ABS CONTROL MODULE -J104- .
- Return Ring
- Removing and Installing, refer to STEERING ANGLE SENSOR -G85- .
- Steering Angle Sensor -G85-
- Component location: Installed in coil ring with slip ring on steering column.
- Removing and Installing, refer to STEERING ANGLE SENSOR -G85- .
- Perform zero adjustment, using the Vehicle diagnostic tester.
- Right Front ABS Wheel Speed Sensor -G45-
- ASR/ESP Button -E256-
- Component location: Inside center console.
- Switches the ASR off and on.
- Audi Hold Assist Pressure Switch
- Located in the center console.
- Function, refer to AUDI HOLD ASSIST .
- Removing and Installing, refer to AUDI HOLD ASSIST SWITCH .
- Parking Brake Pressure Switch -F234-
- Located in the center console.
- Removing and Installing, refer to PARKING BRAKE SWITCH -F321- .
- Diagnostic Connection
- Component location: cover in driver footwell.
