Overview - Window Regulator

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

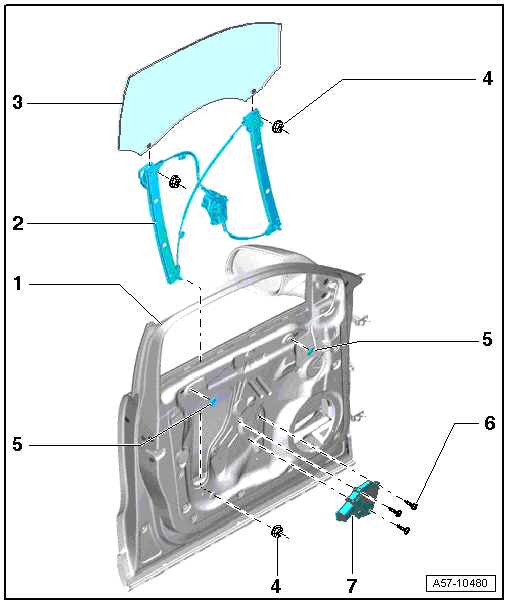

Fig 1: Identifying Window Regulator Motor And Regulator Assembly

Courtesy of AUDI OF AMERICA, LLC

Door
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
Window Regulator
- The door window is removed. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Door Window
- Removing and installing. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
Nut
- 6 Nm
Seal
Bolt
- 3.5 Nm
- Quantity: 3
Window Regulator Motor
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
