Tire Repair Kit, Expiration Date, Checking

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The tire sealant bottle is located behind the left side trim panel in the luggage compartment.

-- Remove the left side trim panel in the luggage compartment.

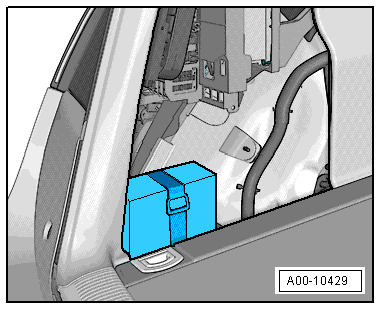

Fig 1: Locating Tire Repair Kit
GWWA00-10429Courtesy of AUDI OF AMERICA, LLC

-- Check the availability of the A/C compressor.

-- Loosen the velcro strap and remove the air compressor: the tire sealant bottle is located behind that.

-- Remove the bottle and check the expiration date -arrow-.

Fig 2: Identifying Durability Date In Tire Repair Kit
GWWA02-0248Courtesy of AUDI OF AMERICA, LLC
NOTE:

Replace a bottle that has already been used.

If expiration date has passed, replace bottle.
