Component Location Overview - Abs/Esp
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

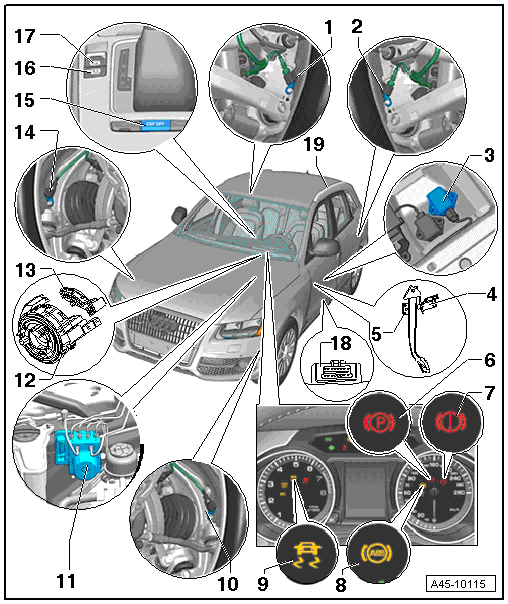

- Right Rear ABS Wheel Speed Sensor -G44-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING .
- Left Rear ABS Wheel Speed Sensor -G46-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING
- ESP Sensor Unit -G419-
- Installed location: under the left front seat
- Combined Transverse Acceleration Sensor -G200-, Rotation Rate Sensor -G202- and Longitudinal Acceleration Sensor -G251-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to ESP Sensor Unit -G419-, REMOVING AND INSTALLING
- Observe installation instructions
- Check the arrow in the direction of travel when installing
- 9 Nm
- Brake Lamp Switch -F-
- Installed location: on the brake pedal
- Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING
- Cannot be reused after removal.
- Brake Pedal
- Removing and installing
- Electromechanical Parking Brake Indicator Lamp --
- Component location in Instrument Cluster Control Module -J285-.
- lights up when the parking brake is engaged and the ignition is switched on,
- lights up for approximately 30 seconds when the parking brake is engaged and the ignition is switched off
- blinks after engaging the parking brake if the brake pressure is not sufficient to prevent the vehicle from rolling.NOTE:
The indicator light must go out when the parking brake is released.
- Brake System Indicator Lamp --
- Component location in Instrument Cluster Control Module -J285-.
- Turns on with the ABS indicator lamp when the ABS system malfunctions
- blinks when the brake fluid is too low
- Blinks when there is a malfunction in the brake system
The malfunction is indicated more precisely when the "SET button" in the instrument cluster is pressed.
- ABS Indicator Lamp -K47-
The indicator lamp monitors the ABS and the Electronic Differential Lock (EDL).
- Component location in Instrument Cluster Control Module -J285-.
- lights up for several seconds when ignition is switched on and goes out after an automatic ABS system self-check if there are no malfunctions in the ABS system.
- There is an ABS malfunction if the indicator light:
- does not light up when ignition is switched on,
- does not go out after a few seconds,
- lights up while driving.
- The vehicle can be stopped with the standard brake system. However, a change in braking behavior should be checked.
The Electronic Differential Lock (EDL) and ABS work together. The ABS indicator light lights up when the EDL malfunctions.
- ASR/ESP Indicator Lamp -K155-
- Component location in Instrument Cluster Control Module -J285-.
- blinks when driving if ESP/ASR engages regularly.
- comes on when ignition is switched on and goes out after a short self-check.
- comes on if there is an ESP system malfunction.
- comes on if there is an ABS system malfunction because ESP and ABS work together.
- comes on when ESP/ASR is switched off.
- comes on during sensor programming if:
- the battery was disconnected and connected,
- vehicle was started with jump start,
- the battery is too weak.
- after the sensor programming procedure, the ESP light goes out after driving a short distance.
- Left Front ABS Wheel Speed Sensor -G47-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Return ring
- Installed location: installed on the steering column with the slip ring
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing, refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
- Right Front ABS Wheel Speed Sensor -G45-
- ASR/ESP Button -E256-
- Switches the ESP/ASR off and on
- The installation location depends on the model, refer to Fig 2
- -AUTO HOLD- Button -E540-
- Located in the center console
- Refer to FUNCTION DESCRIPTION - AUTO HOLD
- Refer to Electromechanical Parking Brake Button -E538- / -AUTO HOLD- Button -E540-, REMOVING AND INSTALLING .
- Electromechanical Parking Brake Button -E538-
- Located in the center console
- Refer Electromechanical Parking Brake Button -E538- / -AUTO HOLD- Button -E540-, REMOVING AND INSTALLING .
- Diagnostic connection
- Installed location: driver side footwell cover
- Roof Rack Recognition Sensor -G625-NOTE:
The Roof Rack Recognition Sensor -G625- is always installed in the left roof railing on both LHD and RHD vehicles.
The sensor cannot be replaced by itself. It is part of the left roof railing.
- Removing and installing, refer to ROOF RAILING, REMOVING AND INSTALLING .

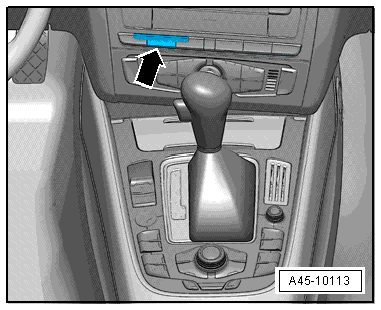

The switch component location is dependent on the model: Vehicle with MMI, ESP switch -arrow-.
